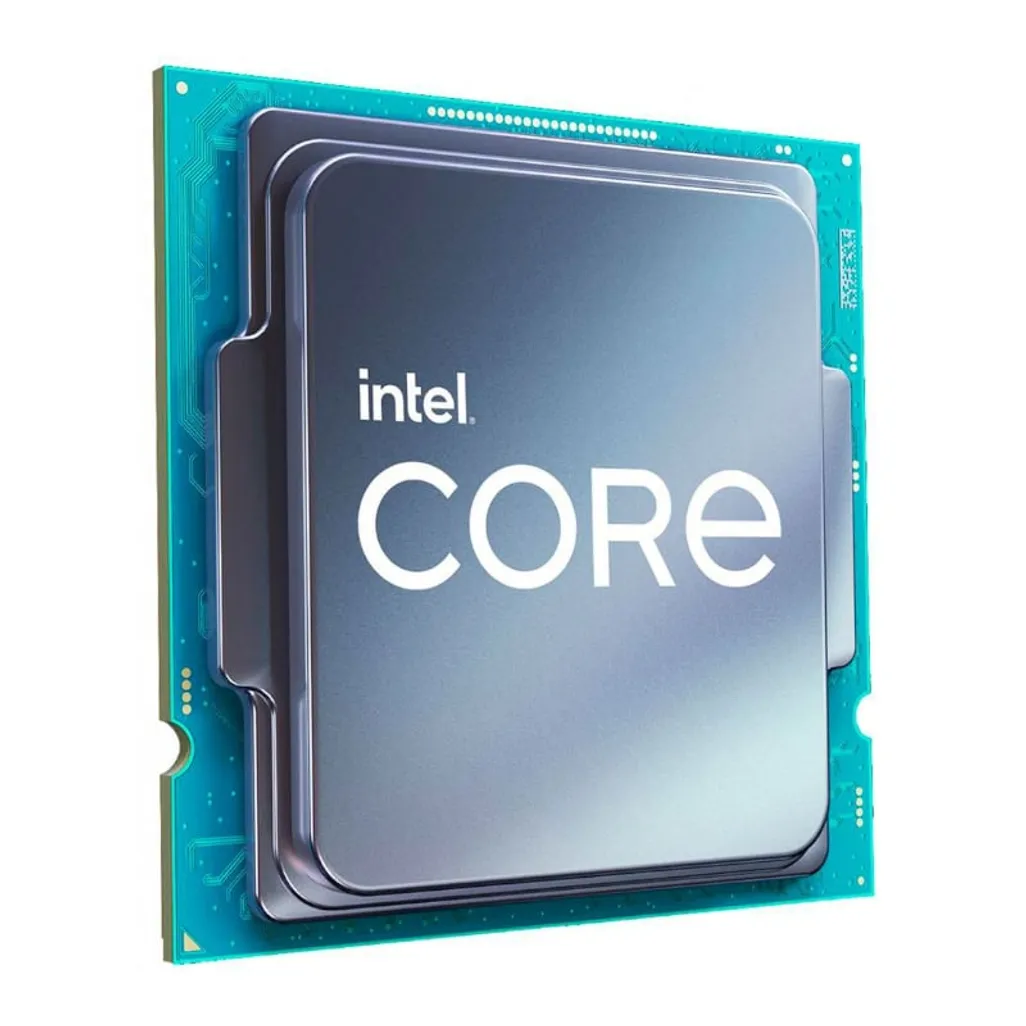

Intel 12th Gen Core i5-12400 LGA 1700 2.5GHZ 6-Core Tray CPU

Take the next evolutionary leap with the performance hybrid architecture of 12th Generation Intel® Core™ processors. Get the performance you need, where you need it, whether you’re a gamer, creator, streamer, or everyday user. Whatever you’re into, do more of it, whenever you want with Intel® 12 Generation processors. With unprecedented new performance hybrid architecture, 12th Gen Intel® Core™ processors offer a unique combination of Performance and Efficient-cores (P-core and E-core). That means real-world performance, intuitively scaled to match whatever you’re doing.

The Performance-core is Intel’s highest-performing CPU core ever. And it’s designed to maximize single-thread performance and responsiveness for compute-intensive workloads like gaming and 3D design. The Efficient-core delivers multithreaded performance for tasks that can run in parallel (like image rendering), along with efficient offload of background tasks for modern multitasking.

So that Performance-cores and Efficient-cores can work seamlessly with the operating system, Intel built Intel® Thread Director right into the hardware. Automatically monitoring and analyzing on-the-fly, Intel® Thread Director guides the operating system, helping it place the right thread on the right core, at the right time. And it does it all dynamically, adapting scheduling guidance based on actual computing needs, not on static rules.

12th Gen Intel® Core™ processors also support the next wave of discrete graphics cards and storage devices. These devices take advantage of increased throughput coming with PCIe 5.0 as well the higher speeds and bandwidth of DDR5 memory. With 12th Gen Intel® Core™ processors, standard, built-in features enable capabilities like noise suppression, auto-framing, and optimization for bandwidth and video resolution while gaming. That saves you time and lets you multitask in ways you’ve only ever dreamed of, until now. From epic gaming to browsing to streaming to creating your next masterpiece, 12th Gen Intel® Core™ processors make it all entirely doable.

FEATURES:

• 6 Cores
• 12 Threads
• Max Turbo Frequency of up to 4.40GHz
• 18MB Intel® Smart Cache
• Support for DDR4 and DDR5 memory
• Built for serious gaming
• Smart solutions for enthusiasts and creators
• Nearly 3x faster connectivity

SPECIFICATIONS:

• Essentials:
  • Product Collection: 12th Generation Intel® Core™ i5 Processors
  • Code Name: Products formerly Alder Lake
  • Vertical Segment: Desktop
  • Processor Number: i5-12400
• CPU Specifications:
  • Total Cores: 6
  • # of Performance-cores: 6
  • # of Efficient-cores: 0
  • Total Threads: 12
  • Max Turbo Frequency: 4.40 GHz
  • Performance-core Max Turbo Frequency: 4.40 GHz
  • Performance-core Base Frequency: 2.50 GHz
  • Cache: 18 MB Intel® Smart Cache
  • Total L2 Cache: 7.5 MB
  • Processor Base Power: 65 W
  • Maximum Turbo Power: 117 W
• Memory Specifications:
  • Max Memory Size (dependent on memory type): 128 GB
  • Memory Types:
    • Up to DDR5 4800 MT/s
    • Up to DDR4 3200 MT/s
  • Max # of Memory Channels: 2
  • Max Memory Bandwidth: 76.8 GB/s
• Processor Graphics:
  • Processor Graphics: Intel® UHD Graphics 730
  • Graphics Base Frequency: 300 MHz
  • Graphics Max Dynamic Frequency: 1.45 GHz
  • Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
  • Execution Units: 24
  • Max Resolution (HDMI): 4096 x 2160 @ 60Hz
  • Max Resolution (DP): 7680 x 4320 @ 60Hz
  • Max Resolution (eDP – Integrated Flat Panel): 5120 x 3200 @ 120Hz
  • DirectX Support: 12
  • OpenGL Support: 4.5
  • Multi-Format Codec Engines: 1
  • Intel® Quick Sync Video: Yes
  • Intel® Clear Video HD Technology: Yes
  • # of Displays Supported: 4
  • Device ID: 0x4692 / 0x4682
  • OpenCL Support: 2.1
• Expansion Options:
  • Direct Media Interface (DMI) Revision: 4.0
  • Max # of DMI Lanes: 8
  • Scalability: 1S Only
  • PCI Express Revision: 5.0 and 4.0
  • PCI Express Configurations: Up to 1×16+4, 2×8+4
  • Max # of PCI Express Lanes: 20
• Advanced Features:
  • Intel® Gaussian & Neural Accelerator: 3.0
  • Intel® Thread Director: No
  • Intel® Deep Learning Boost (Intel® DL Boost): Yes
  • Intel® Optane™ Memory Supported: Yes
  • Intel® Speed Shift Technology: Yes
  • Intel® Turbo Boost Max Technology 3.0: No
  • Intel® Turbo Boost Technology: 2.0
  • Intel® Hyper-Threading Technology: Yes
  • Intel® Virtualization Technology (VT-x): Yes
  • Intel® Virtualization Technology for Directed I/O (VT-d): Yes
  • Intel® VT-x with Extended Page Tables (EPT): Yes
  • Intel® 64: Yes
  • Instruction Set: 64-bit
  • Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
  • Idle States: Yes
  • Enhanced Intel SpeedStep® Technology: Yes
  • Thermal Monitoring Technologies: Yes
  • Intel® Volume Management Device (VMD): Yes
• Security & Reliability
  • Intel® AES New Instructions: Yes
  • Secure Key: Yes
  • Intel® OS Guard: Yes
  • Execute Disable Bit: Yes
  • Intel® Boot Guard: Yes
  • Mode-based Execute Control (MBE): Yes
  • Intel® Control-Flow Enforcement Technology: Yes

WHAT’S IN THE BOX:

• Intel 12th Gen Core i5-12400 LGA1700 2.5GHz 6-Core CPU x1
