The 14th Generation Intel® Core™ processors offer a performance hybrid architecture, allowing for the next evolutionary leap. Get the performance you need, right where you need it, whether you’re a gamer, creator, streamer, or regular user. With Intel® 14 Generation processors, you can do more of what you enjoy, whenever you want. The 14th generation Intel® Core™ processors feature a hybrid architecture that combines performance and efficiency (P-core and E-core). That translates to real-world performance, intuitively scaled to match your work.
The Performance-core is Intel’s most powerful CPU core ever. It’s also optimised for single-thread performance and responsiveness in compute-intensive workloads such as gaming and 3D design. The Efficient-core provides multithreaded performance for tasks that can run concurrently (such as image rendering), as well as efficient offloading of background tasks for modern multitasking.
Intel built Intel® Thread Director directly into the hardware to ensure that Performance and Efficient cores work seamlessly with the operating system. Intel® Thread Director guides the operating system by automatically monitoring and analysing on the fly, ensuring that the right thread is placed on the right core at the right time. And it does it all dynamically, adapting scheduling guidance to actual computing needs rather than static rules.
The 14th Gen Intel® Core™ processors support the next generation of discrete graphics cards and storage devices. These devices take advantage of the increased throughput provided by PCIe 5.0, as well as the faster speeds and bandwidth of DDR5 memory. 14th Gen Intel® Core™ processors include built-in features for noise suppression, auto-framing, and optimised bandwidth and video resolution for gaming. This saves you time and allows you to multitask in ways you couldn’t have imagined before. 14th Gen Intel® Core™ processors enable various tasks, including gaming, browsing, streaming, and creating masterpieces.
FEATURES:
- 6 Cores
- 16 Threads
- Max Turbo Frequency of up to 4.7 GHz
- 20MB Intel® Smart Cache
- Support for DDR4 and DDR5 memory
- Built for serious gaming
- Smart solutions for enthusiasts and creators
- Nearly 3x faster connectivity
SPECIFICATIONS:
- Essentials:
- Product Collection: 14th Generation Intel® Core™ i5 Processors
- Code Name: Products formerly Raptor Lake
- Vertical Segment: Desktop
- Processor Number: i5-14400
- CPU Specifications:
- Total Cores: 10
- # of Performance-cores: 6
- # of Efficient-cores: 4
- Total Threads: 16
- Max Turbo Frequency: 4.7 GHz
- Performance-core Max Turbo Frequency: 4.7 GHz
- Performance-core Base Frequency: 2.50 GHz
- Efficient-core Max Frequency: 3.5 GHz
- Efficient-core Base Frequency: 1.8 GHz
- Cache: 20 MB Intel® Smart Cache
- Total L2 Cache: 9.5 MB
- Processor Base Power: 65 W
- Maximum Turbo Power: 148 W
- Memory Specifications:
- Max Memory Size (dependent on memory type): 192 GB
- Memory Types:
- Up to DDR5 4800 MT/s
- Up to DDR4 3200 MT/s
- Max # of Memory Channels: 2
- Max Memory Bandwidth: 76.8 GB/s
- Processor Graphics:
- Processor Graphics: Intel® UHD Graphics 730
- Graphics Max Dynamic Frequency: 1.55 GHz
- Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
- Execution Units: 24
- Max Resolution (HDMI): 4096 x 2160 @ 60Hz
- Max Resolution (DP): 7680 x 4320 @ 60Hz
- Max Resolution (eDP – Integrated Flat Panel): 5120 x 3200 @ 120Hz
- DirectX Support: 12
- OpenGL Support: 4.5
- Multi-Format Codec Engines: 1
- Intel® Quick Sync Video: Yes
- Intel® Clear Video HD Technology: Yes
- # of Displays Supported: 4
- Device ID: 0x4682/0xA782
- OpenCL Support: 3.0
- Expansion Options:
- Direct Media Interface (DMI) Revision: 4.0
- Max # of DMI Lanes: 8
- Scalability: 1S Only
- PCI Express Revision: 5.0 and 4.0
- PCI Express Configurations: Up to 1×16+4, 2×8+4
- Max # of PCI Express Lanes: 20
- Advanced Features:
- Intel® Gaussian & Neural Accelerator: 3.0
- Intel® Deep Learning Boost (Intel® DL Boost): Yes
- Intel® Speed Shift Technology: Yes
- Intel® Turbo Boost Max Technology 3.0: No
- Intel® Turbo Boost Technology: 2.0
- Intel® Hyper-Threading Technology: Yes
- Intel® 64: Yes
- Instruction Set: 64-bit
- Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
- Idle States: Yes
- Enhanced Intel SpeedStep® Technology: Yes
- Thermal Monitoring Technologies: Yes
- Intel® Volume Management Device (VMD): Yes
- Security & Reliability
- Intel® AES New Instructions: Yes
- Secure Key: Yes
- Intel® OS Guard: Yes
- Execute Disable Bit: Yes
- Intel® Boot Guard: Yes
- Mode-based Execute Control (MBE): Yes
- Intel® Control-Flow Enforcement Technology: Yes
- Intel® Standard Manageability (ISM): Yes
- Intel® Virtualization Technology (VT-x): Yes
- Intel® Virtualization Technology for Directed I/O (VT-d): Yes
- Intel® VT-x with Extended Page Tables (EPT): Yes
WHAT’S IN THE BOX:

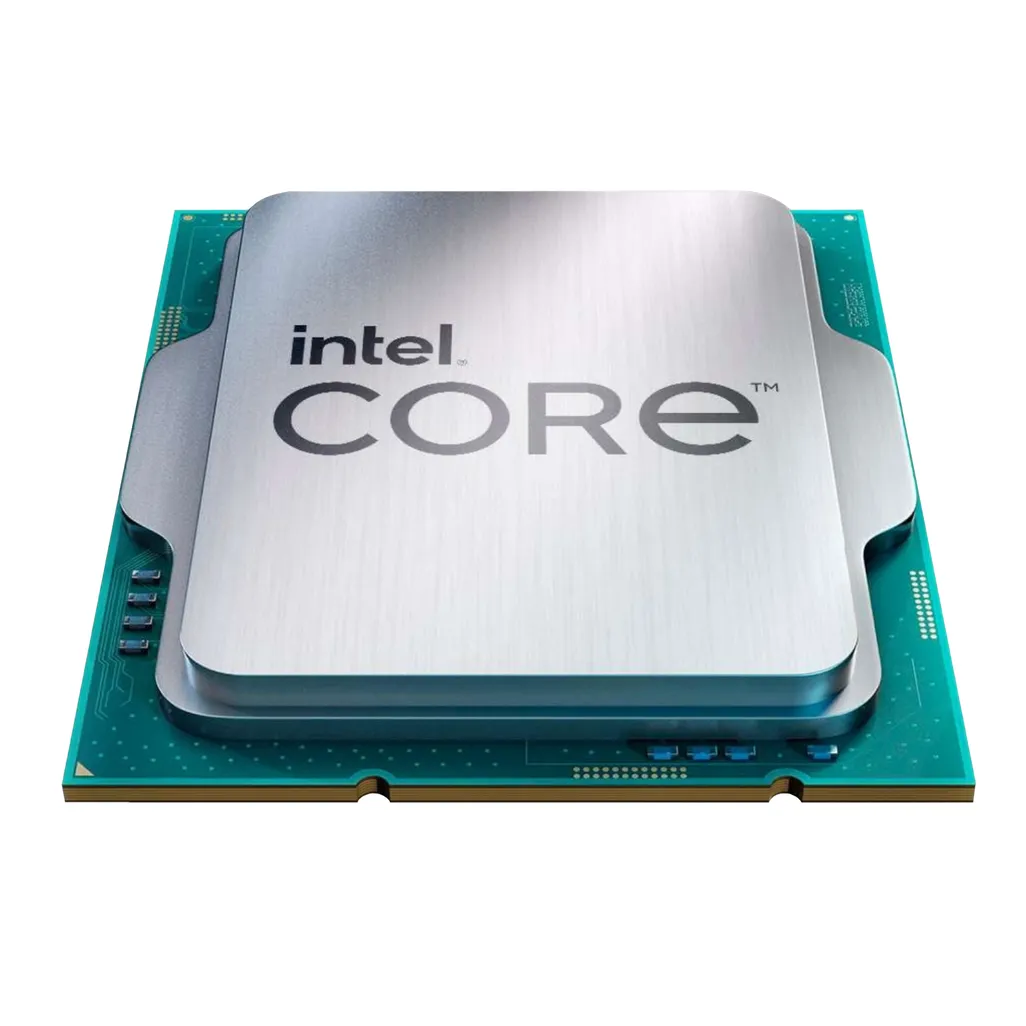

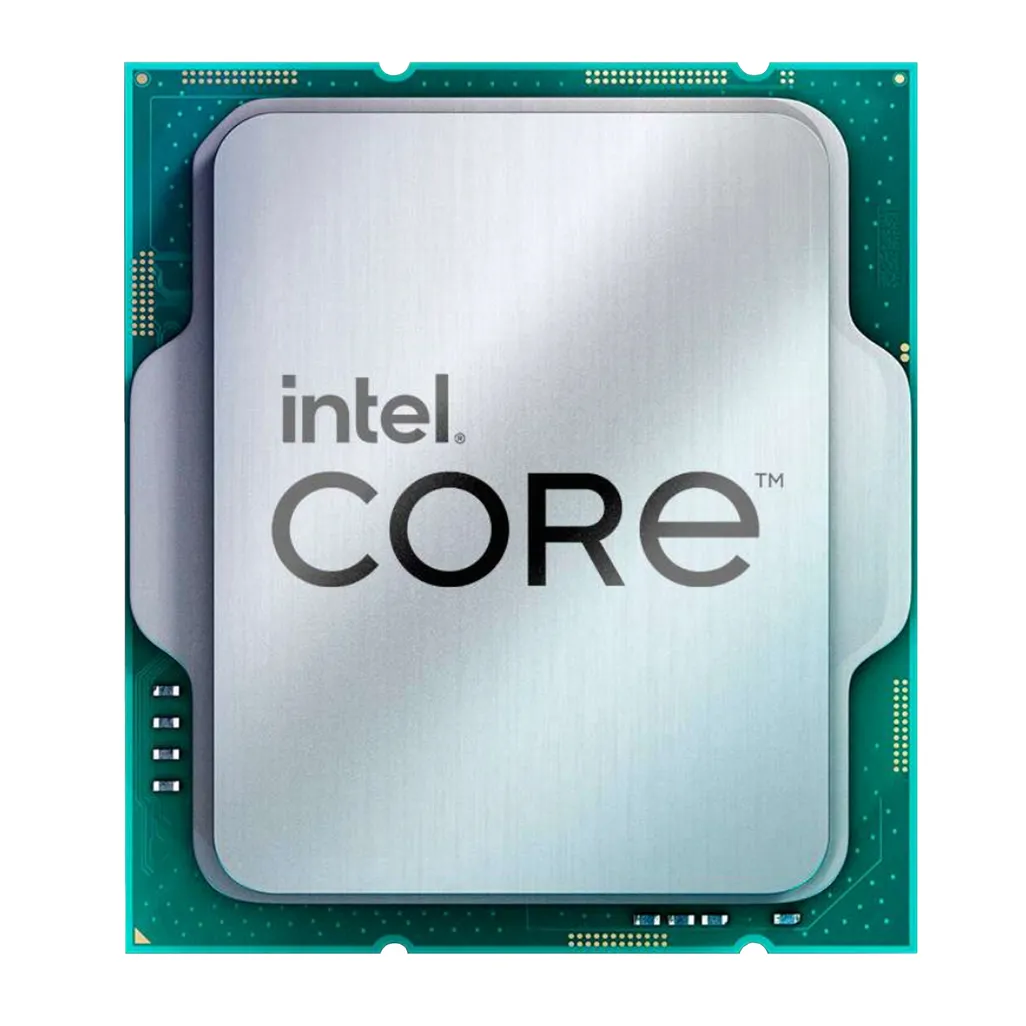

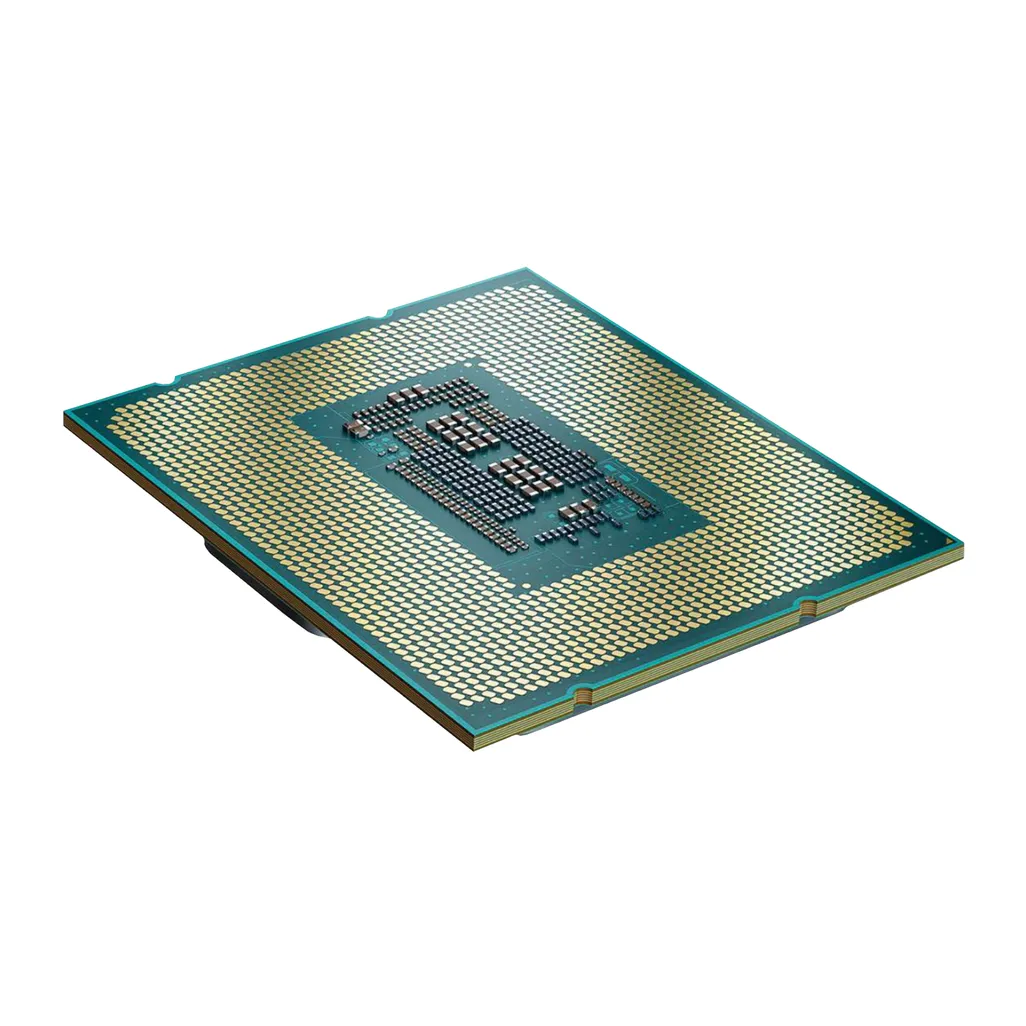

- Intel 14th Gen Core i5-14400 LGA1700 2.5GHz 10-Core CPU x1
