  3. Asus PRIME B650M-A WIFI II M-ATX Gaming Motherboard
Sold Out

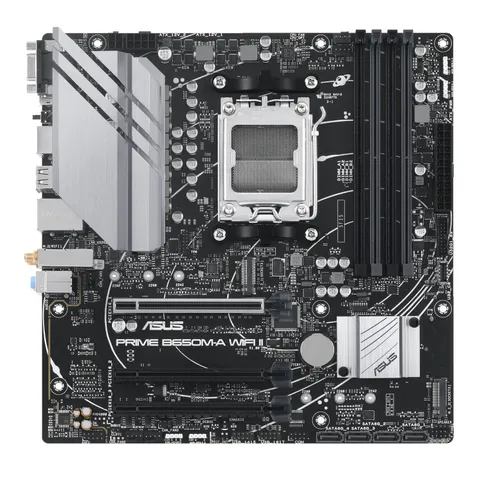

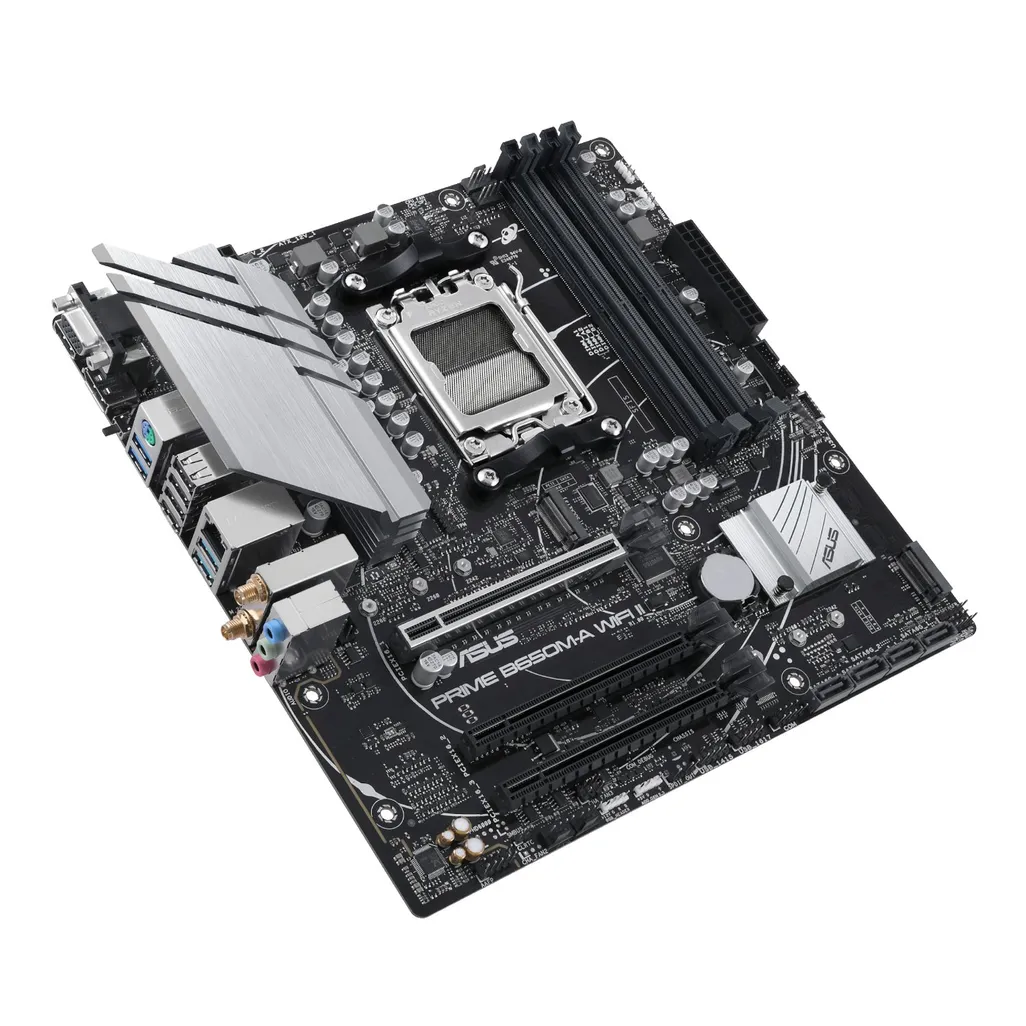

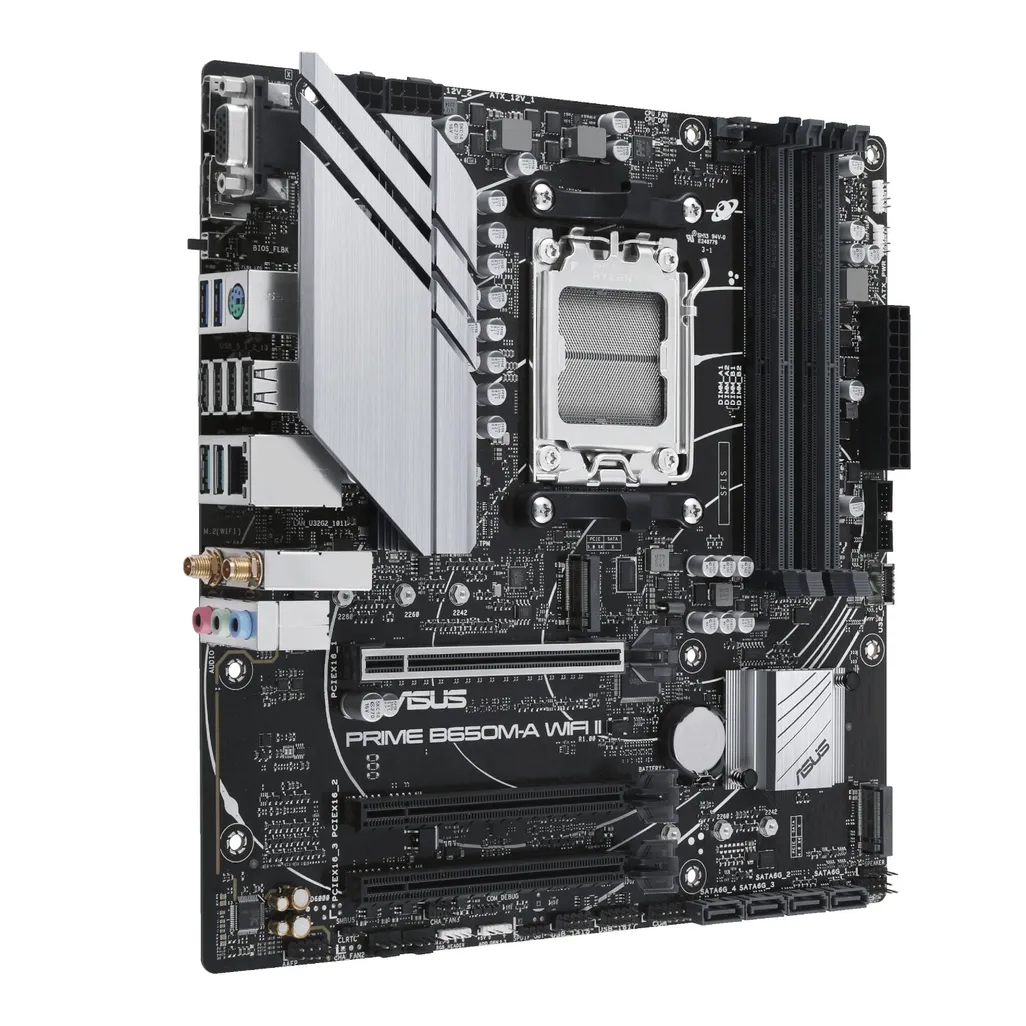

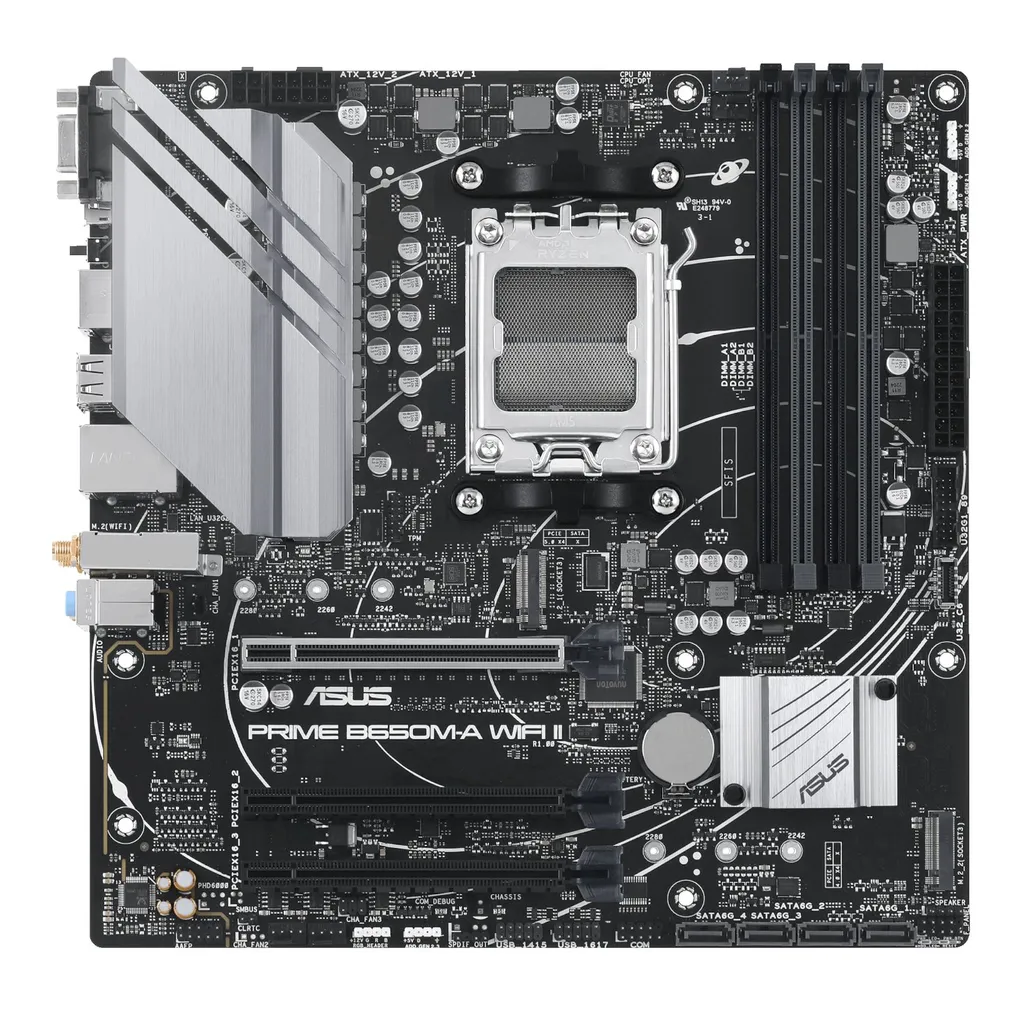

Asus PRIME B650M-A WIFI II M-ATX Gaming Motherboard

SKU: PRIME-B650M-AWIFIII

read more ↓ read less ↑

0,000,000.00 Out of Stock
Qty.
Add to Cart Add to Wishlist

Engineered to maximise the capabilities of AMD Ryzen™ 7000, 8000, and 9000 Series desktop processors, the ASUS PRIME B650M-A WIFI II M-ATX motherboard is the ultimate foundation for your next high-performance build. Backed by a robust AMD B650 chipset, this board features a rock-solid VRM design with integrated thermal pads and a large heatsink, ensuring optimal heat dissipation for stable performance under pressure. Whether you're gaming, editing, or multitasking, this motherboard supports DDR5 memory up to a blistering 7600+ MHz (OC), paired with ASUS OptiMem II technology for improved signal integrity and memory overclocking potential.

Stay cool and in control with ASUS’s comprehensive thermal management system. The PRIME B650M-A WIFI II features an advanced cooling layout including VRM and chipset heatsinks, hybrid fan headers, and customizable profiles via Fan Xpert 2+ or the intuitive UEFI BIOS. Multi-layer PCB construction with 2-ounce copper layers ensures excellent heat transfer, giving enthusiasts more headroom for overclocking. Tweak and tune your setup with ease using ASUS’ suite of intelligent software tools—tailored for both seasoned builders and first-time upgraders looking to extract every ounce of power from their rig.

Equipped with next-gen connectivity, the ASUS PRIME B650M-A WIFI II ensures you're always ahead of the curve. Enjoy lightning-fast wireless speeds thanks to integrated Wi-Fi 6 (802.11ax), along with Realtek 2.5Gb Ethernet for ultra-low latency gaming and streaming. Dual PCIe M.2 slots (including one PCIe 5.0-ready) support blazing-fast SSDs, while multiple USB 3.2 Gen 2 and Type-C® ports offer high-speed data transfer and versatile device compatibility. Onboard HDMI, DisplayPort, and legacy VGA ensure seamless multi-monitor setups, while Aura Sync RGB headers let you personalize your build with vibrant lighting effects.

Compact in its M-ATX form factor yet powerful in function, the PRIME B650M-A WIFI II supports up to 192GB of dual-channel DDR5 RAM and includes four SATA 6Gb/s ports for traditional storage solutions. It’s built for durability and long-term reliability, with reinforced components designed to handle high bandwidth and core-count demands. Whether you're building a gaming rig, a content creation station, or a productivity powerhouse, this motherboard delivers rock-solid performance and flexible expansion options—all while being fully compatible with Windows® 11 and Windows® 10 64-bit systems.

FEATURES:

  • AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
  • Ultrafast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

SPECIFICATIONS:

  • Socket: AM5
  • CPU: Supports AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
  • Chipset: AMD B650 Chipset
  • DDR5 Memory: Support DDR5 up to 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory, ASUS OptiMem II
  • Memory Channel: Dual
  • DIMM Slots: 4
  • Max Memory (GB): 192
  • PCI-E 4.0 x16: 1
  • PCI-E 4.0 x1: 2
  • SATA 6G: 4
  • M.2 Slot: 2
  • LAN: Realtek 2.5Gb Ethernet
  • Wireless and Bluetooth: Wi-Fi 6, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth v5.2

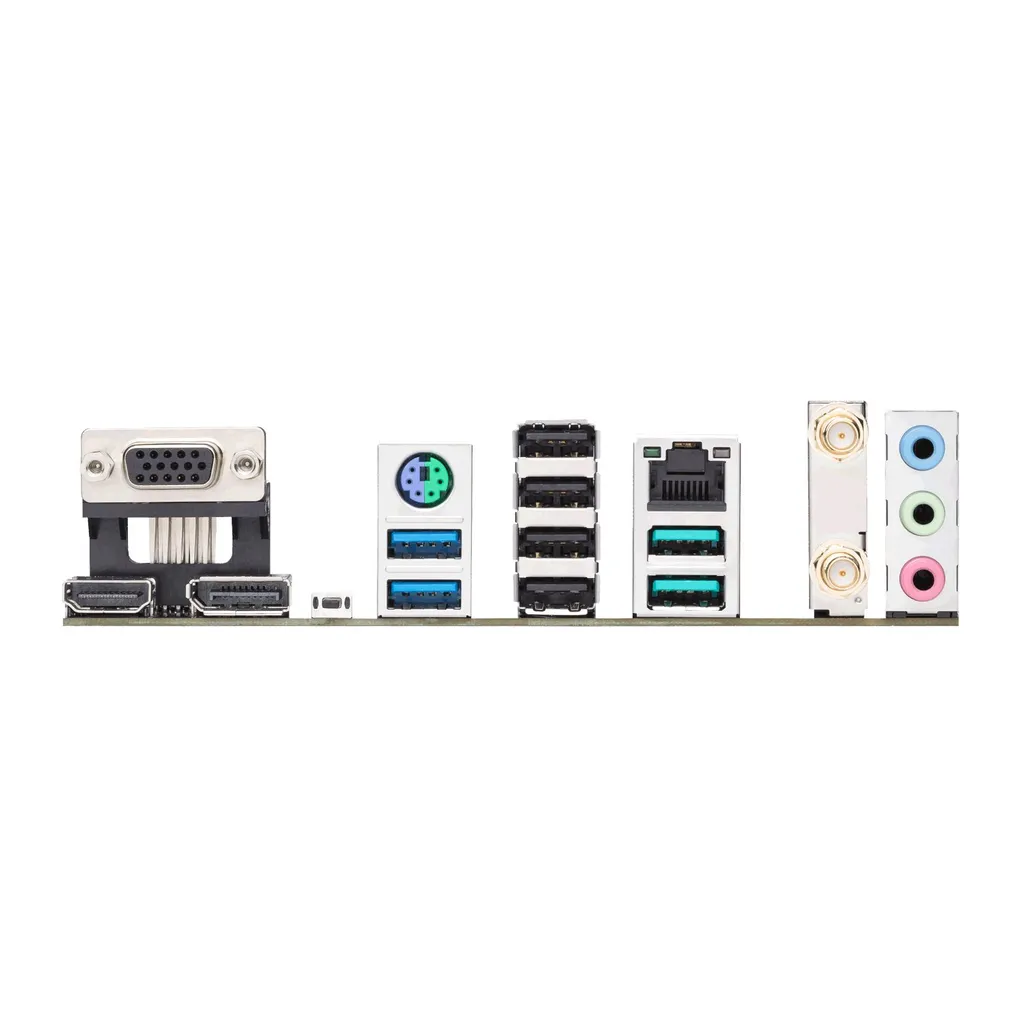

  • USB Ports Rear:
    • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
    • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)
  • USB Ports Front:
    • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Audio ports (Rear): Realtek 7.1 Surround Sound High Definition Audio CODEC
  • VGA: 1
  • HDMI: 1
  • DisplayPort: 1
  • DirectX: 12
  • Form Factor: M-ATX
  • Operating System: Support for Windows® 11, Windows® 10 64-bit

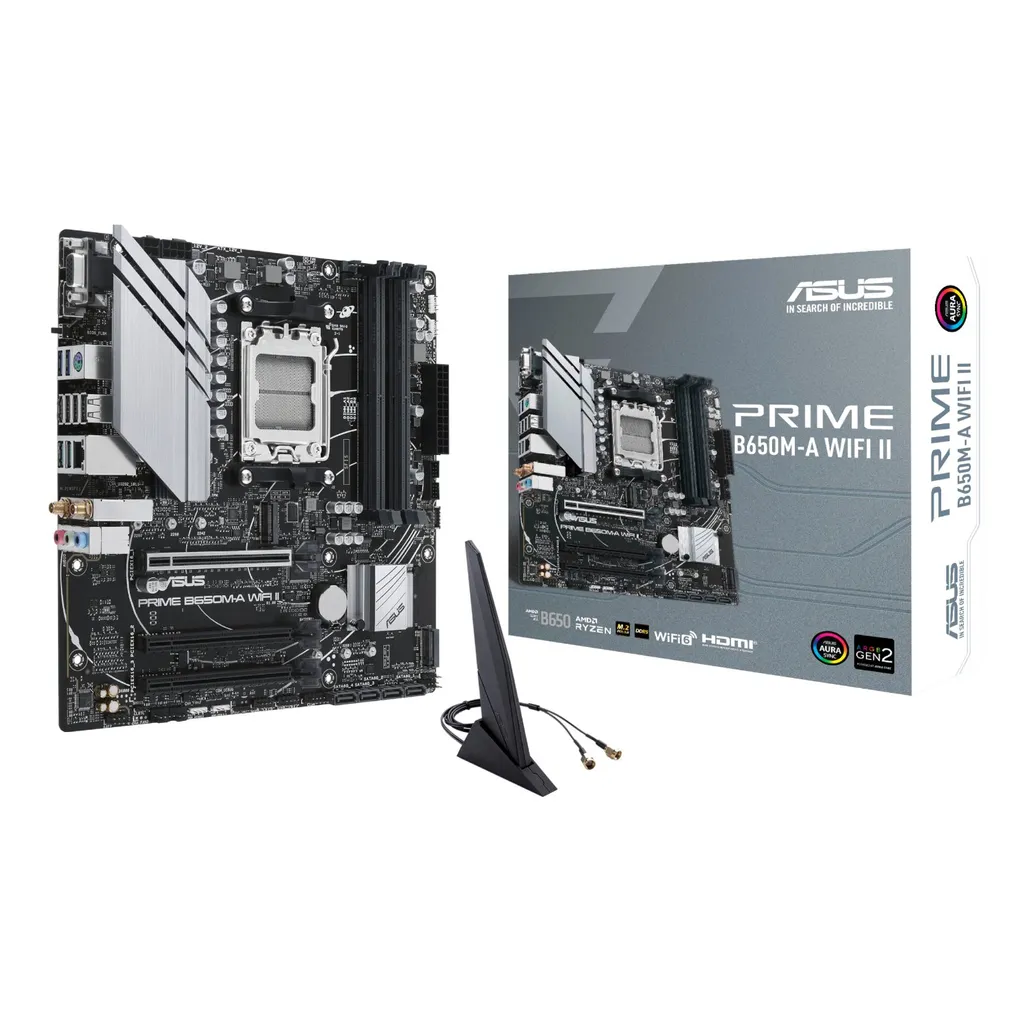

WHAT'S IN THE BOX:

  • Asus PRIME B650M-A WIFI II M-ATX Gaming Motherboard - Black x1
  • SATA 6Gb/s Cables x2
  • Asus Wi-Fi Moving  Antennas x1
  • I/O Shield x1
  • Screw Packaging for M.2 SSD x1
  • User Guide x1
