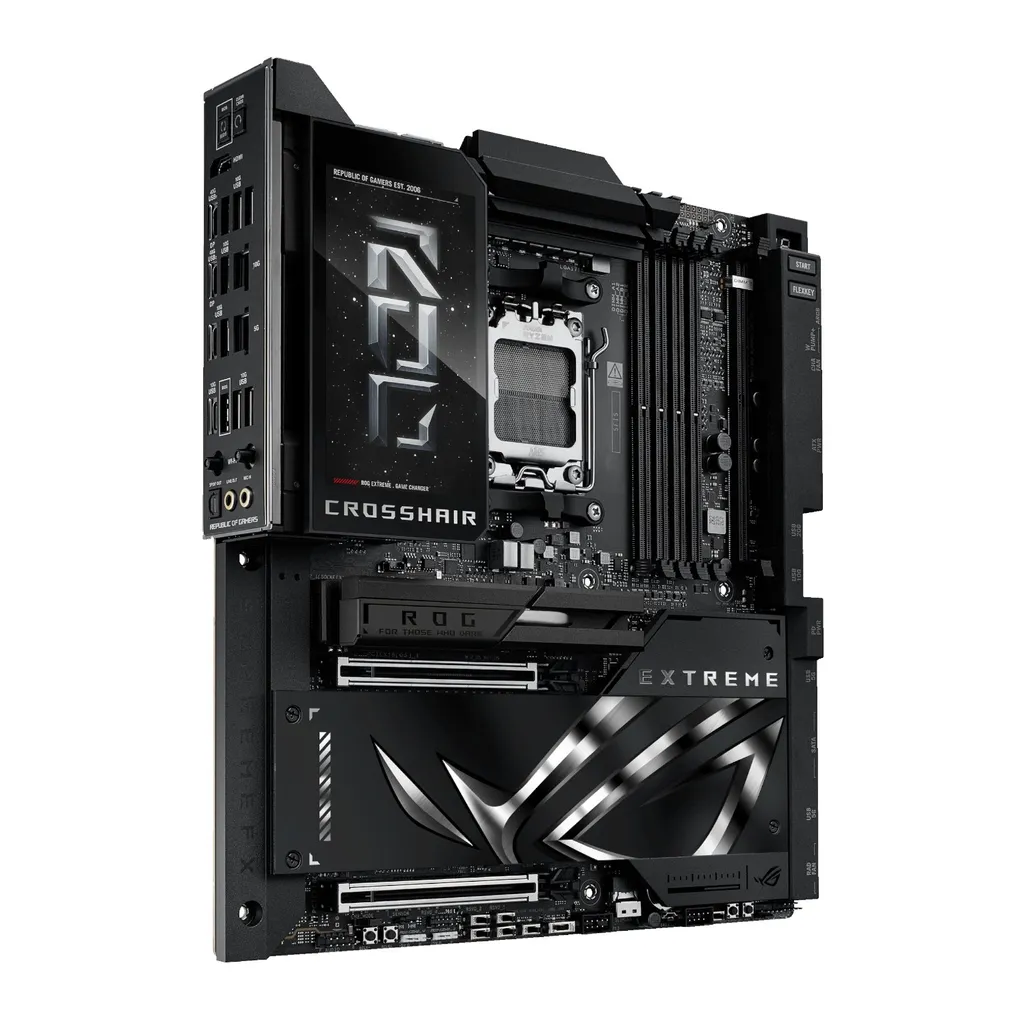

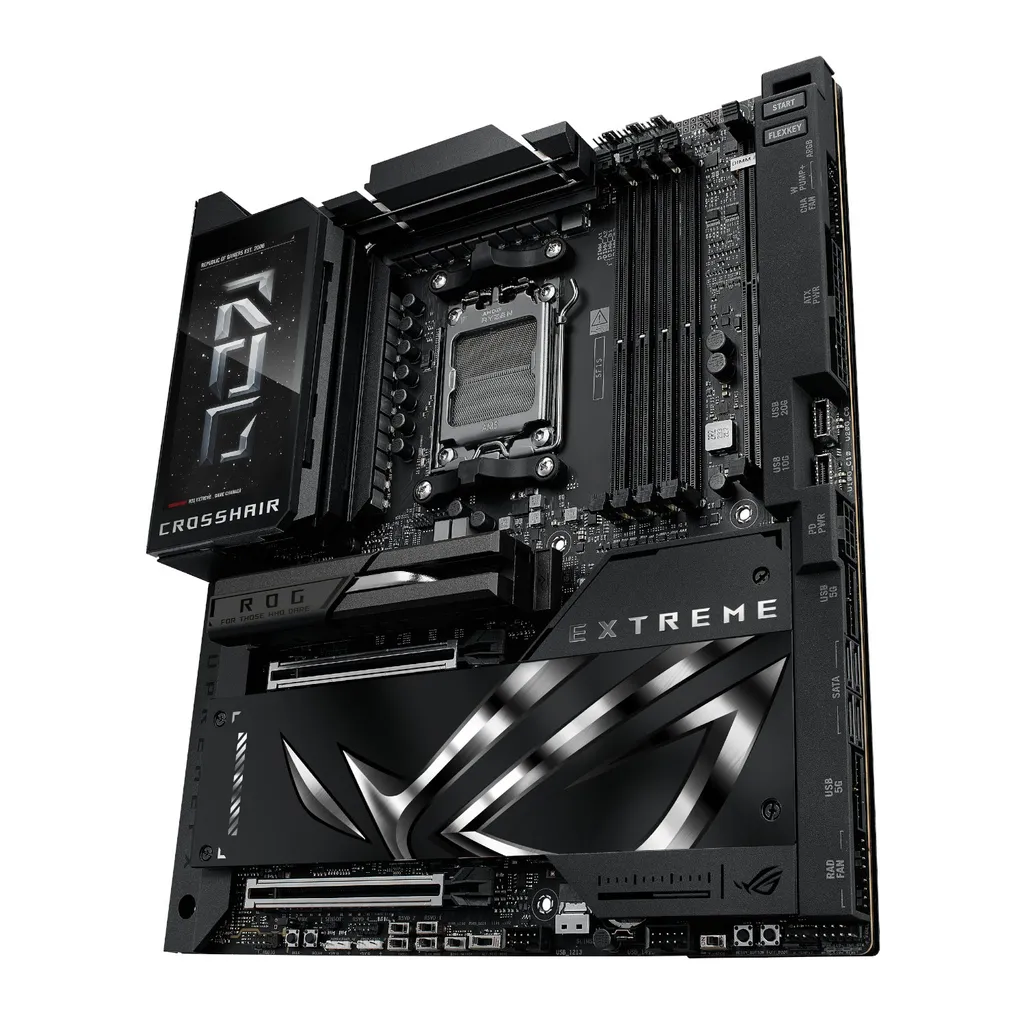

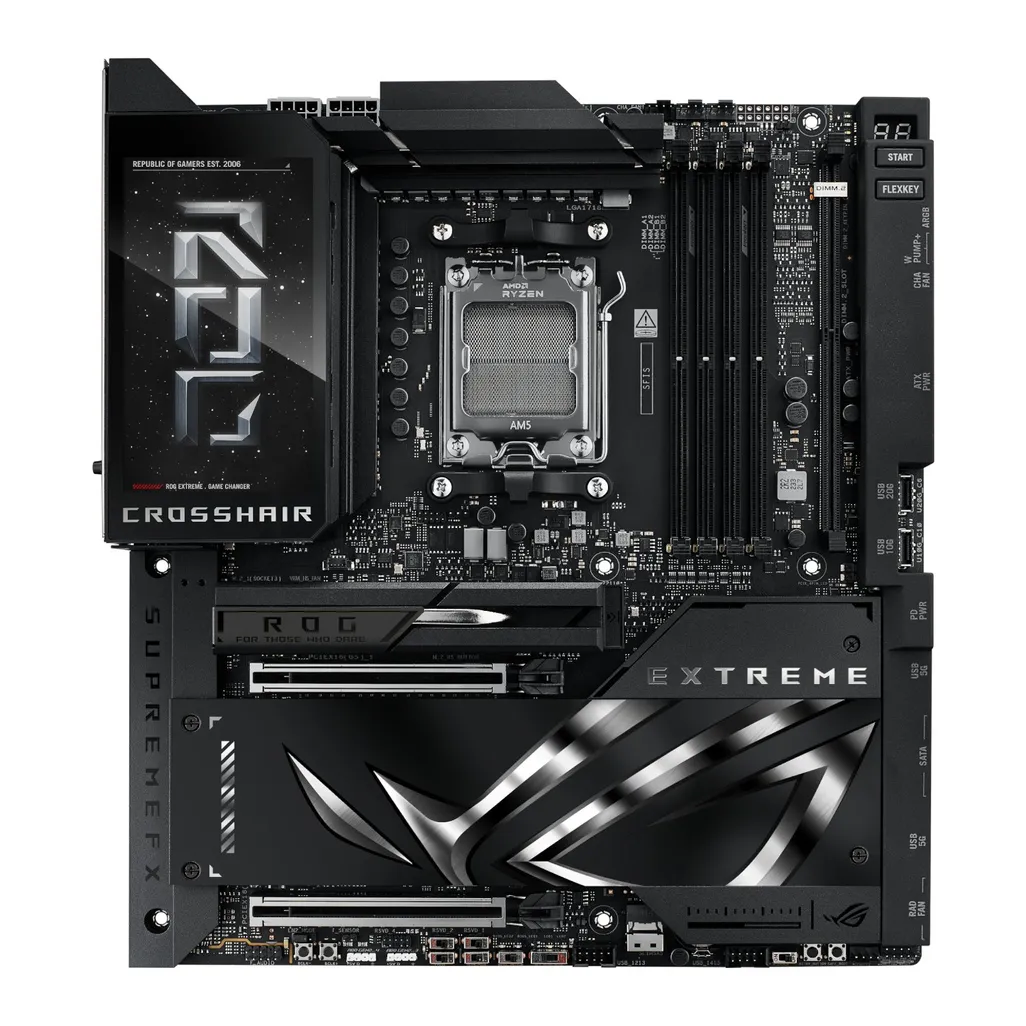

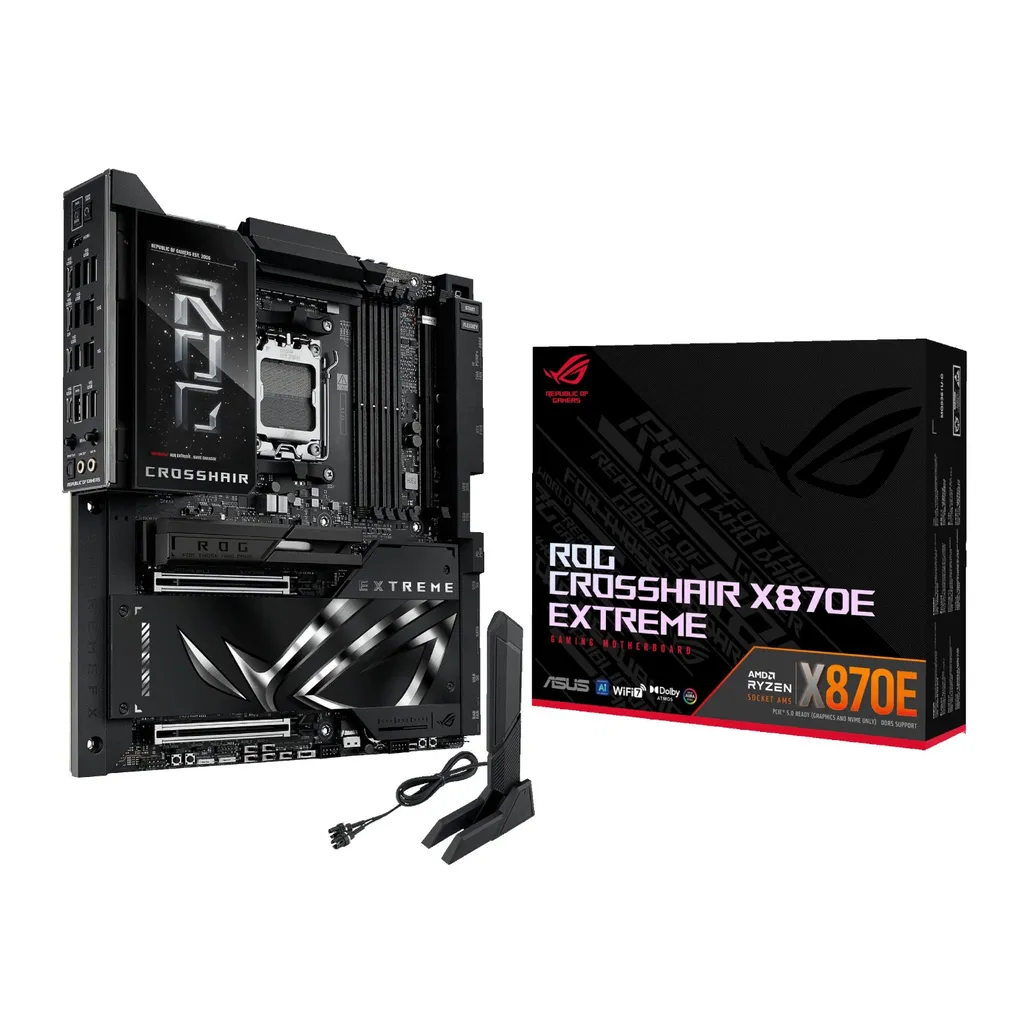

Asus ROG Crosshair X870E EXTREME AM5 E-ATX Gaming Motherboard

Quick Specs

• Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors for the ultimate in processing power.
• Experience blazing-fast data transfer speeds with PCIe 5.0 slot and Lightning Gen 5 support.
• DIY-friendly design featuring PCIe slot Q-Release, M.2 Q-Latch, and Q-LED for effortless building.
• Enjoy robust connectivity with multiple USB ports, including front and rear USB Type-C with power delivery.
• Personalise your gaming rig with advanced cooling solutions and customisable RGB lighting options.

Elevate Your Gaming Experience with the Ultimate AM5 Motherboard

The ASUS ROG Crosshair X870E EXTREME is the premier AM5 motherboard, designed for gamers and enthusiasts who demand peak performance and cutting-edge technology. Supporting AMD Ryzen 9000, 8000, and 7000 Series desktop processors, this gaming motherboard provides a robust foundation for your dream gaming PC. Experience unparalleled speed, connectivity, and customisation options to take your gaming to the next level.

Unleash Lightning-Fast Performance

Take advantage of PCIe 5.0 and Lightning Gen 5 support, which offers blazing-fast data transfer speeds for the latest GPUs and NVMe SSDs. This ensures your system is always performing at its best, providing smooth gameplay and minimal loading times. Maximise your gaming potential with the most advanced technology available on an AM5 motherboard.

Effortless PC DIY Experience

Building your own PC has never been easier with the ASUS ROG Crosshair X870E EXTREME AM5 motherboard. Featuring PCIe slot Q-Release, Q-Antenna, M.2 Q-Latch, Q-LED, and a BIOS Flashback button, this gaming motherboard is designed for easy usage and troubleshooting. Whether you are a seasoned builder or a first-time enthusiast, you will appreciate the user-friendly design.

Comprehensive Connectivity Options

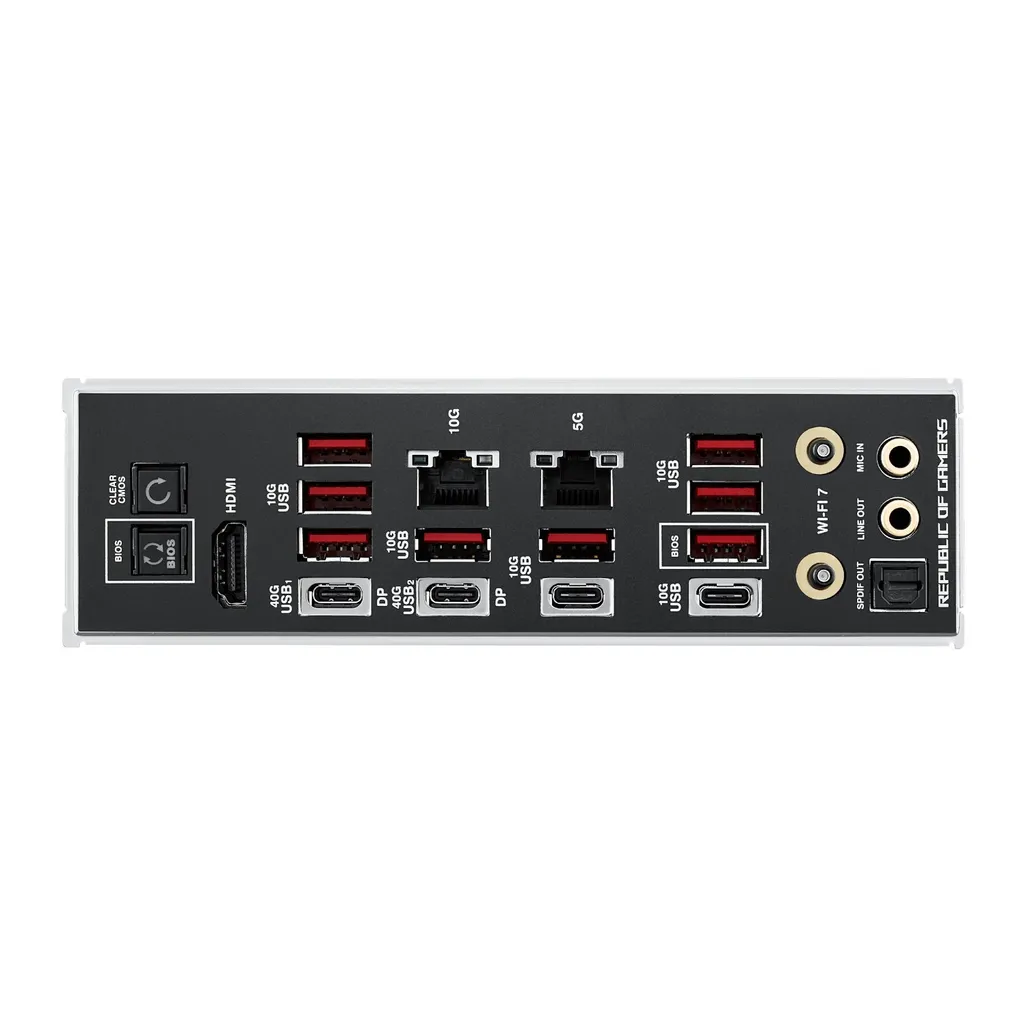

Stay connected with a wide range of USB ports, including multiple rear USB ports and front USB ports with Type-C and power delivery. This ensures you have ample connectivity options for all your peripherals and devices. Enjoy fast charging and data transfer speeds, making your gaming setup more convenient and efficient with this leading AM5 motherboard.

Advanced Cooling Solutions

The ASUS ROG Crosshair X870E EXTREME features advanced cooling solutions to keep your system running smoothly, even under heavy loads. With comprehensive cooling options for your CPU, chipset, and M.2 drives, this AM5 gaming motherboard ensures optimal thermal performance and stability. Maximise your system's potential without worrying about overheating.

Personalised Aesthetics

Customise your gaming rig with personalised aesthetics using the motherboard's RGB lighting options. With support for various lighting effects and synchronisation with other compatible devices, you can create a unique and visually stunning gaming setup. Express your personal style and make your PC stand out from the crowd with the Crosshair X870E EXTREME AM5 motherboard.

Built to Last

Designed with premium components and rigorous testing, the ASUS ROG Crosshair X870E EXTREME is built to last. Enjoy long-term reliability and performance, ensuring your investment is protected. This AM5 gaming motherboard is the perfect choice for gamers and enthusiasts who demand the best in quality and durability.

FEATURES:

• Full Colour 5" LCD display for system info on the fly or custom images
• AMD X870E Chipset with a huge E-ATX form factor for spacious builds
• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 9000+ MT/s (OC) 256GB max capacity
• Ultra-fast Wi-Fi 7 connectivity with Marvell AQtion 10G and Realtek 5G Ethernet LAN
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 support
• 40Gbps USB4 connectivity support for high-speed data transfer
• EZ PC DIY: PCIe slot Q-Release, Q-Antenna, M.2 Q-Latch, Q-LED and BIOS Flashback button for easy usage

SPECIFICATIONS:

• CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Chipset: AMD X870E Chipset
• Memory:
  • 4 x DIMM slots, max. 256GB, DDR5 Supports up to
  • 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
  • 9000+MT/s(OC) with Ryzen™ 8000 Series Processors,
  • 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
  • ECC and Non-ECC, Un-buffered DIMM*
  • Dual Channel Memory Architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
  • NitroPath DRAM Technology
  • *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
  • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics:
  • 1 x HDMITM port**
  • 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
  • * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  • ** Supports 4K@60Hz as specified in HDMI 2.1.
  • *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
  • **** VGA resolution support depends on processors' or graphic cards' resolution.
• Expansion Slots:
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  • 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
  • AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
  • 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled)
  • AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
  • 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled)
  • * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  • ** When both PCIEX16_1 and PCIEX16_2 are in use, they will each run in x8 mode.
  • *** When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
  • *** When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
  • *** When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
  • To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported
• Storage:
  • Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
  • AMD Ryzen™ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)
  • AMD X870E Chipset
  • DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately.
  • 4 x SATA 6Gb/s ports
  • * Specifications vary by CPU types.
  • ** When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
  • ** When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
  • ** When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
