Asus ROG STRIX B860-F Gaming Wi-Fi Motherboard - Intel LGA1851

SKU: ROGSTRIXB860-FGAMINGWIFI

read more ↓ read less ↑

0,000,000.00 Out of Stock
Qty.
Add to Cart Add to Wishlist

Engineered for the next generation of gamers, the Asus ROG STRIX B860-F Gaming motherboard delivers powerful performance, exceptional connectivity, and signature ROG design tailored for high-performance builds. Built on the robust Intel® B860 chipset and designed to support 14th and 13th Gen Intel® Core™ processors on the LGA1851 socket, this motherboard offers gamers the tools to dominate their arena.

With DDR5 memory support, PCIe 5.0 slots for lightning-fast graphics and storage access, and onboard WiFi 7 capabilities, the Asus ROG STRIX B860-F Gaming provides an ultra-responsive platform for competitive gaming and content creation. Its enhanced power design and extensive cooling features ensure consistent performance, even under heavy workloads. Furthermore, integrated Thunderbolt™ 4 headers offer seamless connectivity for next-gen peripherals and high-speed data transfer.

Targeted at gamers, power users, and performance PC builders, the Asus ROG STRIX B860-F Gaming stands out with its bold aesthetics, RGB lighting compatibility, and intuitive DIY-friendly features. Whether you're customising your setup with Armoury Crate or optimising system performance with AI-enhanced tuning, this motherboard delivers.

Every aspect of the Asus ROG STRIX B860-F Gaming is fine-tuned to elevate your PC experience, ensuring that style meets substance in one powerful package.

FEATURES:

  • AI suite 3 & armoury crate
  • Thunderbolt™ 4 header support
  • Integrated Wi-Fi 7 & Intel 2.5Gb ethernet
  • PCIe 5.0 expansion: Ideal for modern GPUs and NVMe drives
  • DDR5 memory support:  High-bandwidth DDR5 memory modules
  • ROG SupremeFX audio with premium capacitors and advanced shielding
  • Aesthetic ROG design – Sleek black PCB, RGB headers, and bold cybertext design
  • Robust power solution: 16+1+1 power stages, alloy chokes, and durable capacitors
  • Intel LGA1851 socket – Compatible with 14th and 13th Gen Intel® Core™ processors
  • DIY-friendly layout includes pre-mounted I/O shield, Q-LED diagnostic, PCIe Slot Q-Release, and BIOS FlashBack™

SPECIFICATIONS:

  • CPU:
    • Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
    • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
  • Chipset: Intel® B860 Chipset
  • Memory:
    • 4 x DIMM slots, max. 256GB, DDR5
    • Support up to 9066MT/s (OC), Non-ECC, Un-buffered,Clocked Unbuffered DIMM (CUDIMM)*
    • Dual-channel memory architecture
    • Supports Intel® Extreme Memory Profile (XMP) memory module
    • DIMM Fit
    • ASUS Enhanced Memory Profile III (AEMP III)
  • Graphics:
    • 1 x DisplayPort
    • 1 x HDMI™ port
    • 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs
  • Expansion Slots:
    • Intel® Core™ Ultra Processors(Series 2)
    • 1 x PCIe 5.0 x16 slot (supports x16 mode)
    • Intel® B860 Chipset
    • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • Storage:
    • Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
    • Intel® Core™ Ultra Processors(Series 2)
    • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    • Intel® B860 Chipset
    • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    • M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
    • M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    • 4 x SATA 6Gb/s ports
  • Ethernet
    • 1 x Intel® 2.5Gb Ethernet
    • ASUS LANGuard
  • Wireless & Bluetooth
    • Wi-Fi 7
    • 2x2 Wi-Fi 7 (802.11be)
    • Supports 2.4/5/6GHz frequency band
    • Supports Wi-Fi 7 160MHz bandwidth, with a transfer rate of up to 2.9Gbps.
    • Bluetooth® v5.4
  • USB
    • Rear USB (Total 9 ports)
    • 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
    • 1 x USB 20Gbps port (1 x USB Type-C®)
    • 1 x USB 10Gbps port (1 x Type-A)
    • 6 x USB 5Gbps ports (6 x Type-A)
    • Front USB (Total 6 ports)
    • 1 x USB 10Gbps (1 x USB Type-C®)
    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 2 x USB 2.0 headers support 3 additional USB 2.0 ports
    • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
      • Impedance sense for front and rear headphone outputs
      • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
      • High-quality 120 dB SNR stereo playback output and 110 dB SNR recording input
      • Supports up to 32-bit/384 kHz playback on the front panel
    • Audio Features
      • SupremeFX Shielding Technology
      • Savitech SV3H712 AMP
      • Rear optical S/PDIF out port
      • Premium audio capacitors- Audio cover

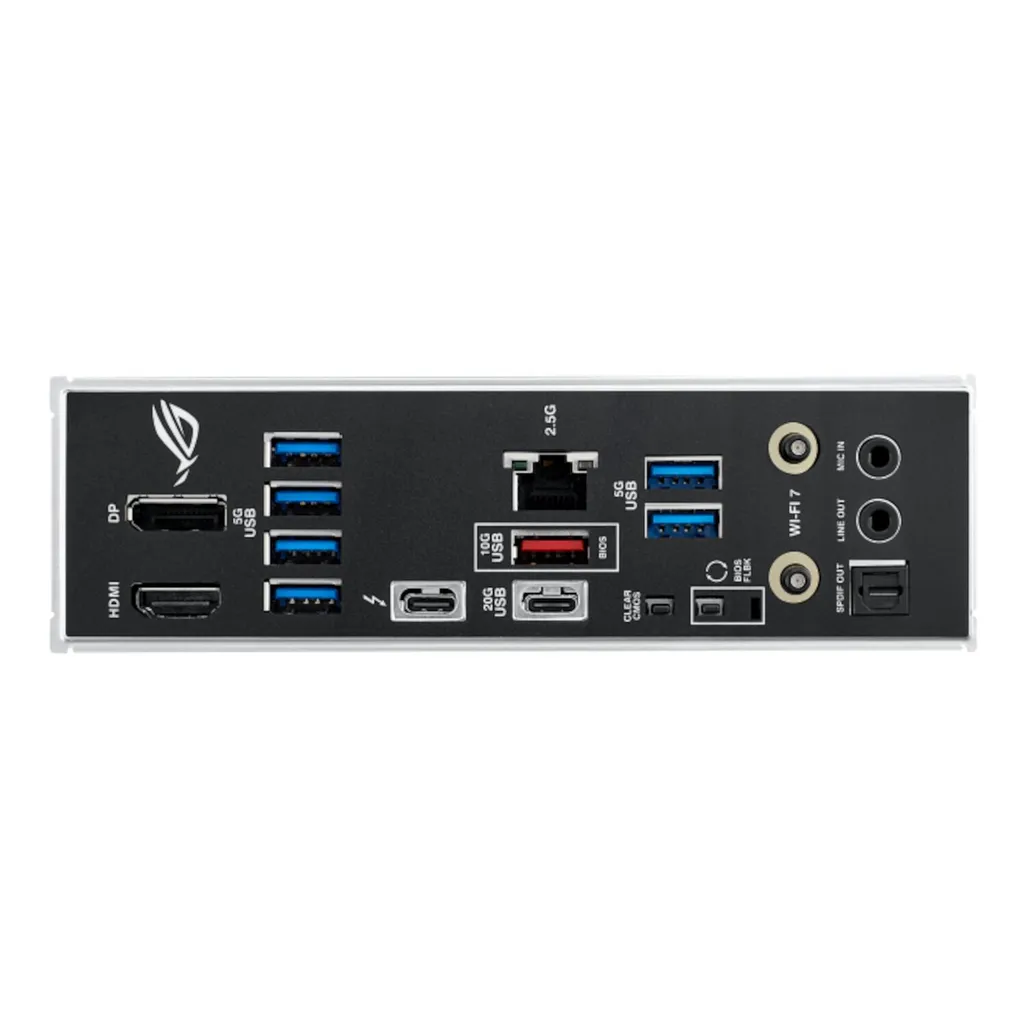

  • Back Panel I/O Ports
    • 1 x Thunderbolt™ 4 (1 x USB Type-C®)
    • 1 x USB 20Gbps port (1 x USB Type-C®)
    • 1 x USB 10Gbps port (1 x Type-A)
    • 6 x USB 5Gbps ports (6 x Type-A)
    • 1 x DisplayPort
    • 1 x HDMI™ port
    • 1 x Wi-Fi module
    • 1 x Intel® 2.5Gb Ethernet port
    • 2 x audio jacks
    • 1 x Optical S/PDIF out port
    • 1 x BIOS FlashBack™ button
    • 1 x Clear CMOS button
  • Internal I/O Connectors
    • Fan and Cooling Related
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin CPU OPT Fan header
    • 1 x 4-pin AIO Pump header
    • 4 x 4-pin Chassis Fan headers
    • Power Related
    • 1 x 24-pin Main Power connector
    • 2 x 8-pin +12V CPU Power connectors
    • Storage Related
    • 4 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
    • USB
    • 1 x USB 10Gbps connector (supports USB Type-C®)
    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 2 x USB 2.0 headers support 3 additional USB 2.0 ports
    • Miscellaneous
    • 3 x Addressable Gen2 headers
    • 1 x Chassis Intrusion header
    • 1 x Front Panel Audio header (F_AUDIO)
    • 1 x Start button
    • 1 x 10-1 pin Front System Panel header
    • 1 x Thermal Sensor header
    • 1 x Thunderbolt™ (USB4®) header
  • Special Features
    • Extreme Engine Digi+
      • - 5K Black metallic capacitors
    • ASUS Q-Design
      • - M.2 Q-Latch
      • - M.2 Q-Release
      • - M.2 Q-Slide
      • - PCIe Slot Q-Release Slim (with PCIe SafeSlot)
      • - Q-Antenna
      • - Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
      • - Q-Slot
    • ASUS Thermal Solution
      • - M.2 heatsink backplate
      • - M.2 heatsink
      • - VRM heatsink design
    • ASUS EZ DIY
      • - BIOS FlashBack™ button
      • - BIOS FlashBack™ LED
      • - Clear CMOS button
      • - CPU Socket lever protector
      • - ProCool
      • - Pre-mounted I/O shield
      • - SafeSlot
      • - SafeDIMM
    • Aura Sync
      • - Addressable Gen2 headers
  • Software Features
    • ROG Exclusive Software
      • - ROG CPU-Z
      • - Dolby Atmos
    • ASUS Exclusive Software
    • Armoury Crate
      • - Aura Creator
      • - Aura Sync
      • - Fan Xpert 4
      • - GameFirst
      • - Power Saving
    • ASUS Driver Hub
      AIDA64 Extreme (60-day free trial)
    • HWiNFO
    • ASUS GlideX
    • TurboV Core
    • Adobe Creative Cloud (Days Free Trial)
    • Norton 360 for Gamers (60 Days Free Trial)
    • WinRAR (40 Days Free Trial)
    • UEFI BIOS
      NPU Boost
    • ASUS EZ DIY
      • - ASUS CrashFree BIOS 3
      • - ASUS EZ Flash
      • - ASUS UEFI BIOS EZ Mode
      • - ASUS MyHotkey
  • BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability: WOL by PME, PXE
  • Operating System: Windows® 11 (22H2 & later)
  • Form Factor:
    • ATX Form Factor
    • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

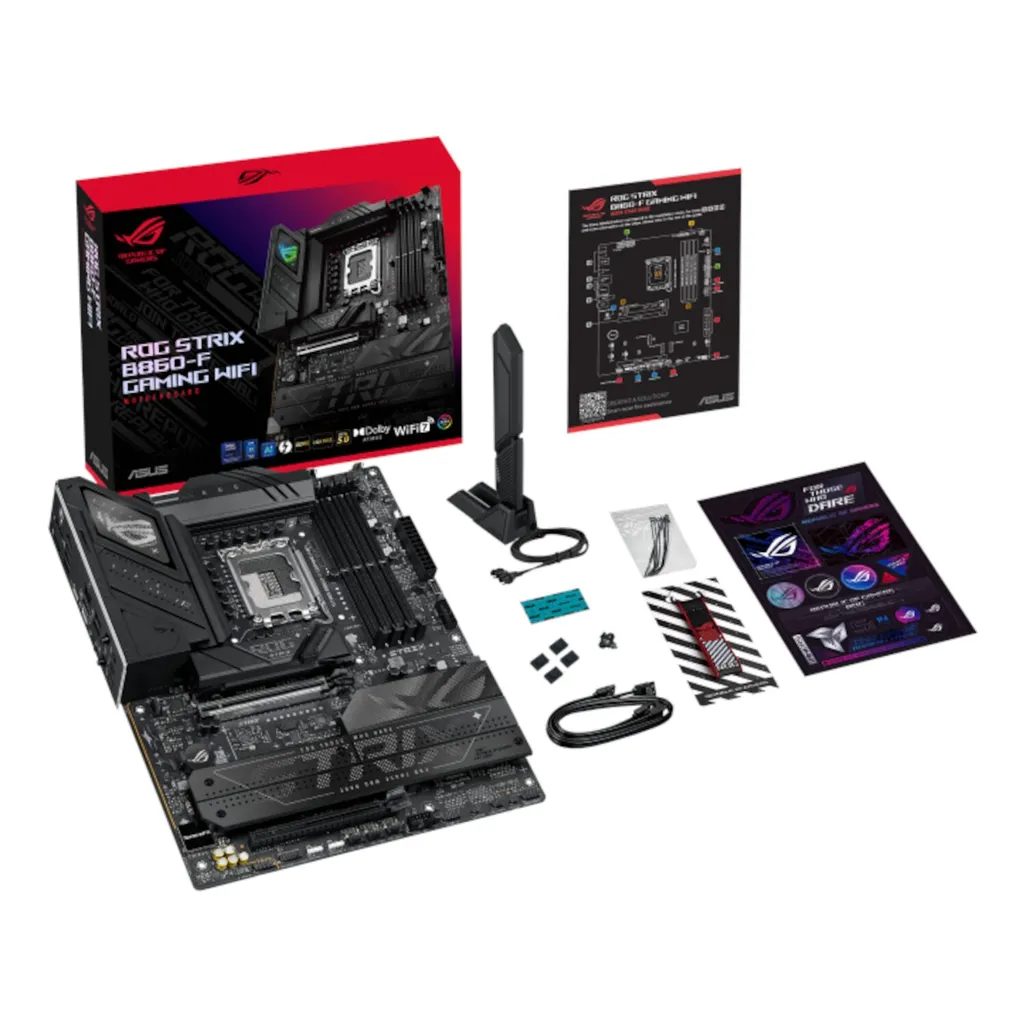

WHAT'S IN THE BOX:

  • Asus ROG STRIX B860-F Gaming Wi-Fi Motherboard - Intel LGA1851 x
  • SATA 6Gb/s cables x2
