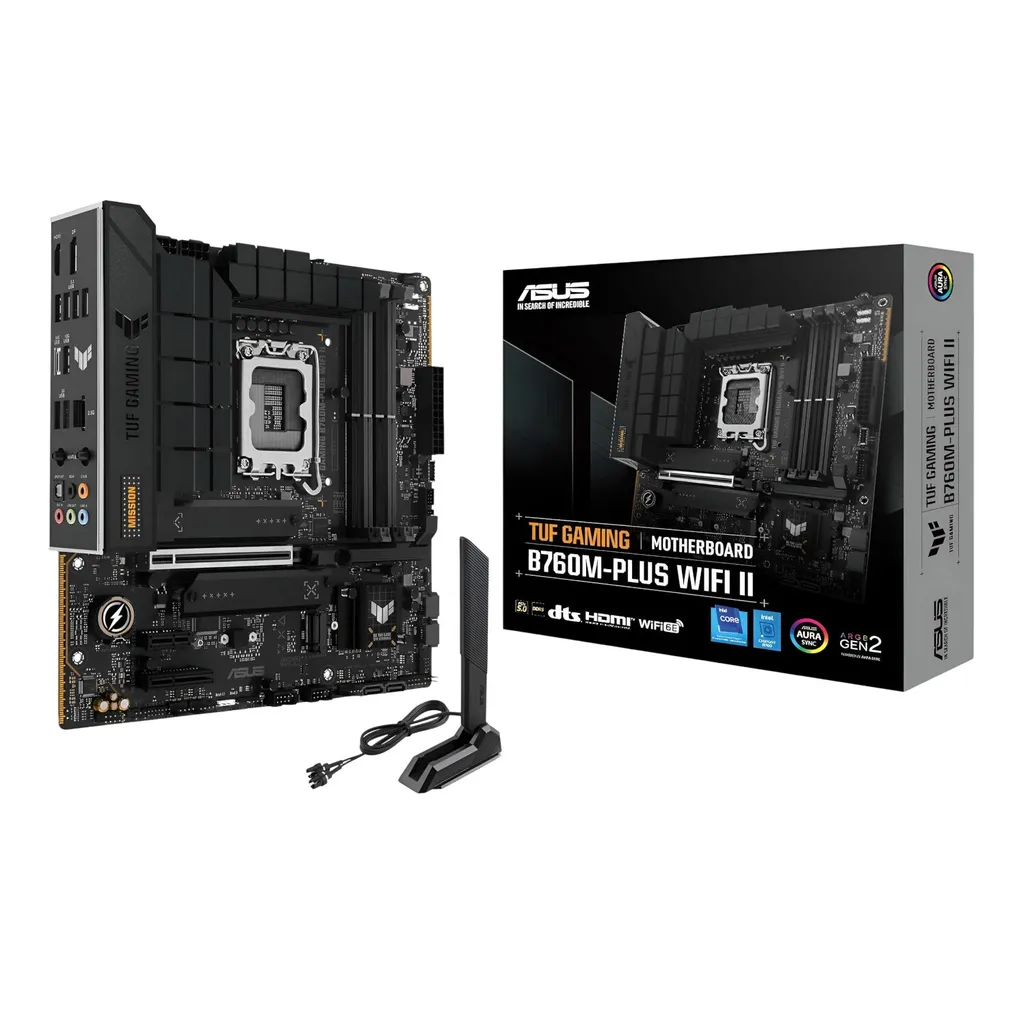

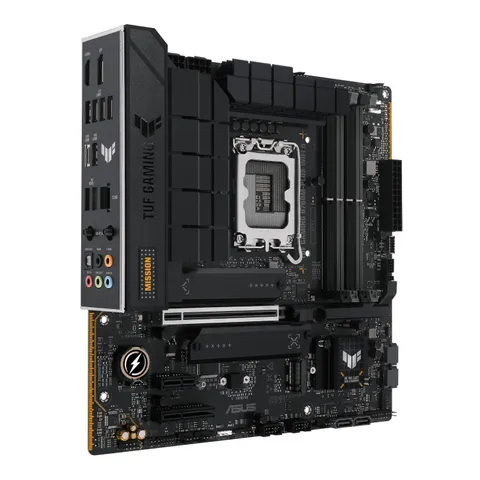

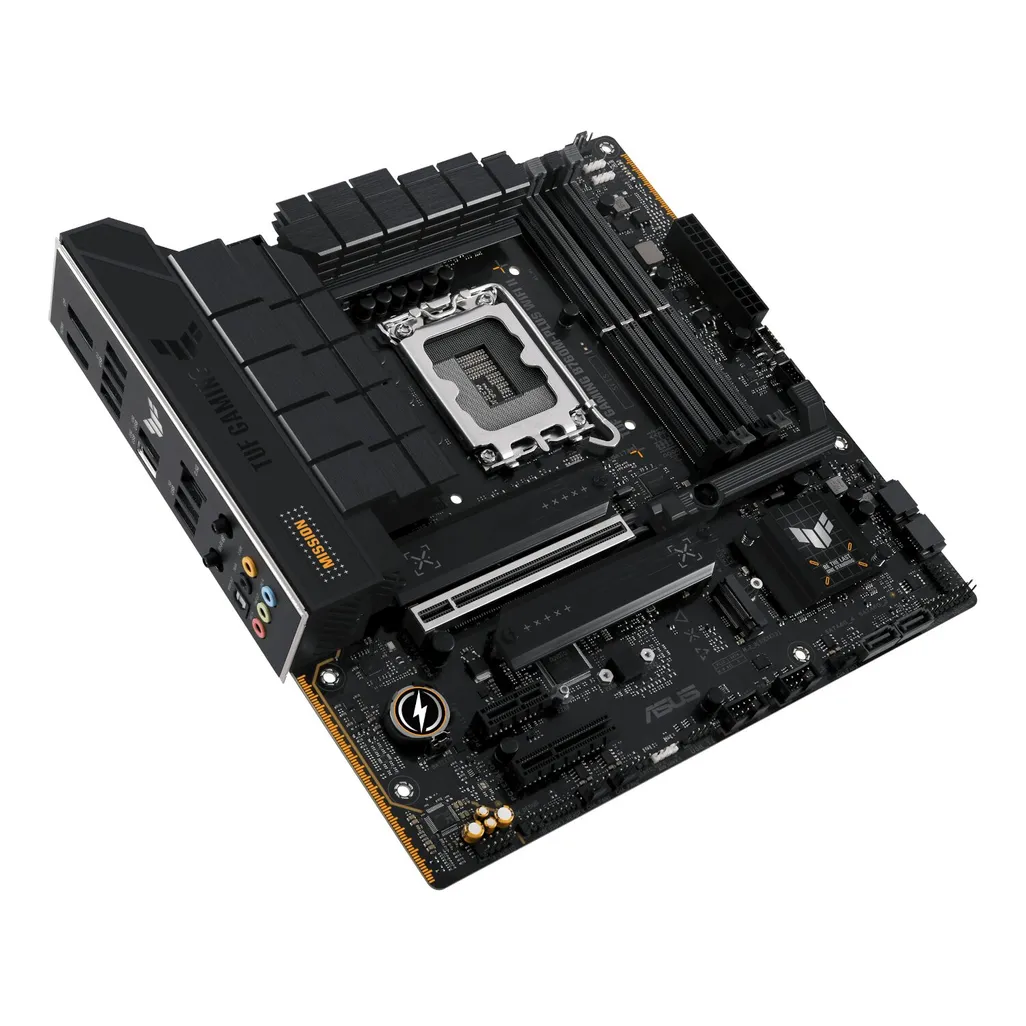

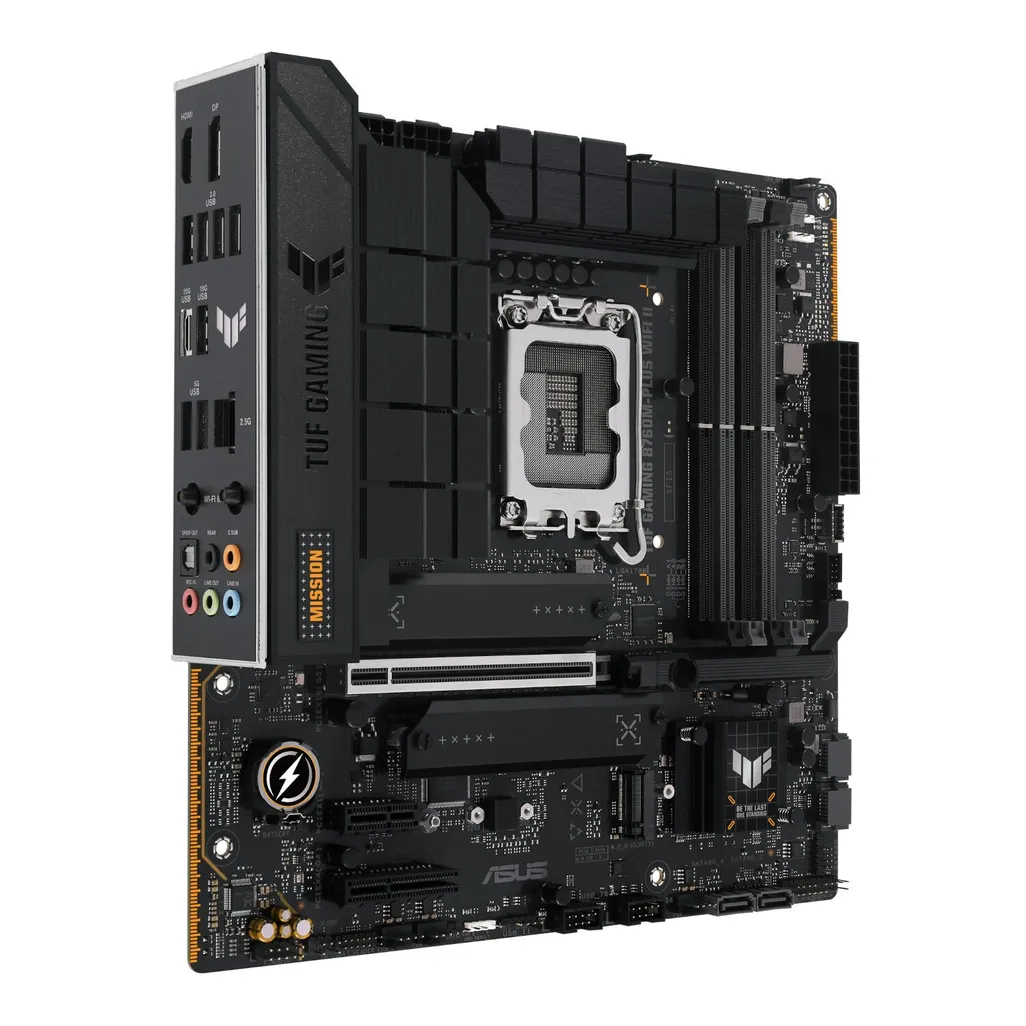

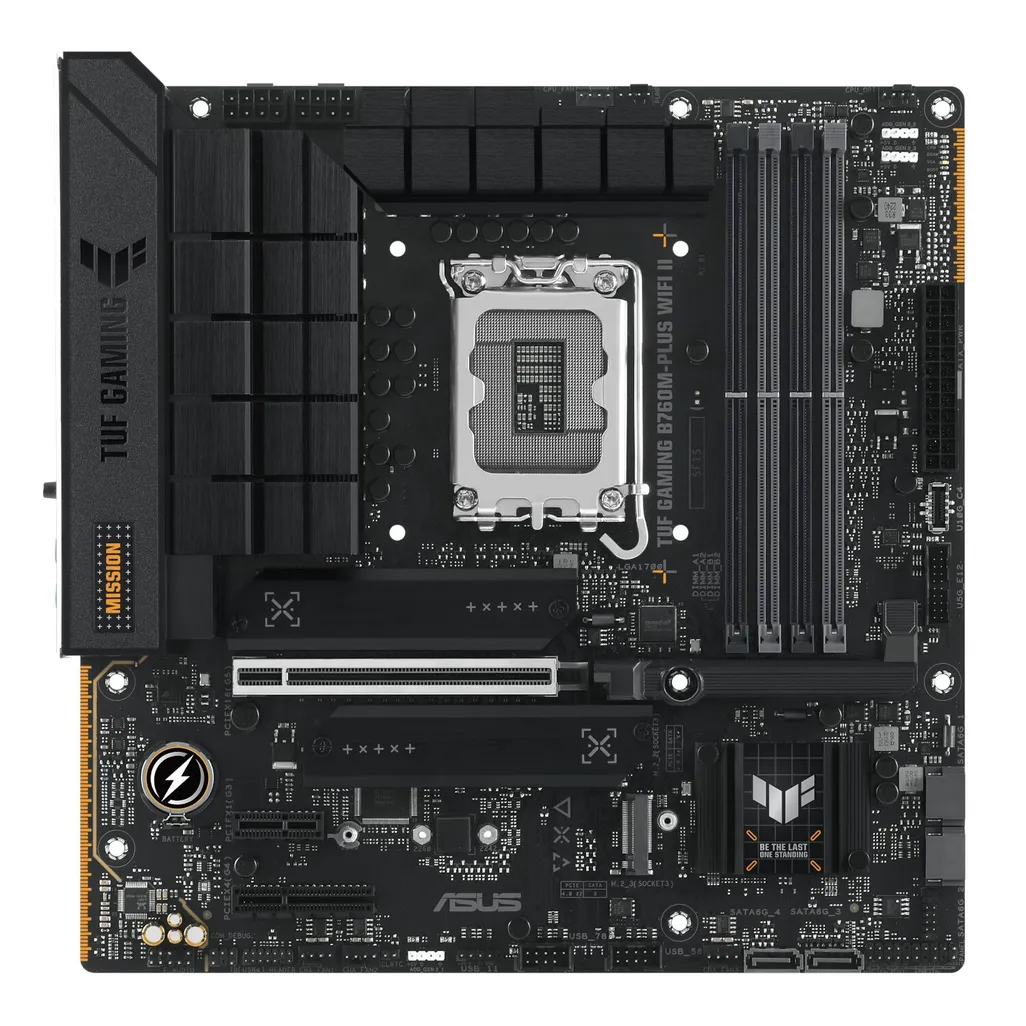

Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard

The Asus TUF Gaming B760M-PLUS WIFI II is a robust micro-ATX Motherboard that delivers exceptional durability, advanced performance, and rock-solid stability for 14th,13th and 12th Gen Intel® Core™ processors. Engineered with military-grade components and TUF-tested reliability, it caters to competitive gamers, PC builders, and performance-driven users seeking a balance between next-gen features and dependable construction.

At its core, the Asus TUF Gaming B760M-PLUS Motherboard features a 12+1 DrMOS power stage VRM architecture, enlarged VRM heatsinks, and a six-layer PCB design to ensure stable power delivery under high-load conditions. It supports DDR5 memory for faster data throughput, lower power consumption, and superior multitasking capabilities. PCIe® 5.0 support unlocks future-ready bandwidth for the latest GPUs, while dual PCIe 4.0 M.2 slots with M.2 Q-Latch simplify high-speed SSD installation.

Seamless connectivity is a cornerstone with integrated Wi-Fi 6E ensuring low-latency wireless networking across the 6 GHz spectrum, while the Intel® 2.5 Gb Ethernet port offers ultra-fast wired connections. Comprehensive cooling controls include hybrid fan headers, AI-powered Fan Xpert 2+ software, and precision thermal monitoring to maintain optimal system performance.

Built for DIY ease, it includes a pre-mounted I/O shield, Q-LED diagnostic indicators, and ASUS SafeSlot Core+ for reinforced GPU retention. The rugged design aesthetic is complemented by support for ASUS Aura Sync RGB lighting, allowing users to personalise builds with unified lighting control. Whether you’re building a compact gaming rig or a high-efficiency workstation, the Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard delivers a future-proof platform tailored for speed, stability, and endurance.

FEATURES:

• Intel® LGA1700 socket supports 14h & 13th Gen Intel® Core™, 12th Core, Pentium® Gold, and Celeron® processors
• 12+1 DrMOS power stages and durable components ensure reliable, stable performance for demanding workloads.
• DDR5 memory supports advanced multitasking and gaming responsiveness
• Next-gen PCIe® 5.0 support provides ultra-high bandwidth for the latest GPUs, enhancing visual performance and data throughput
• Dual PCIe 4.0 M.2 slots support NVMe SSDs for ultra-fast game and application loading times
• Wi-Fi 6E connectivity delivers high-speed, low-latency wireless networking across the 6 GHz band
• Intel® 2.5Gb Ethernet provides high-speed wired networking ideal for streaming, competitive gaming, and heavy data transfers
• Enlarged VRM heatsinks, hybrid fan headers, and Fan Xpert 2+ software maintain thermal efficiency under load
• Military-grade components and six-layer PCB ensure long-term reliability and enhanced power integrity
• DIY-friendly design includes pre-mounted I/O shield, M.2 Q-Latch, SafeSlot Core+, and Q-LED indicators
• ASUS Aura Sync RGB support offers customisable lighting synchronisation with compatible components
• Armoury Crate centralised software for performance tuning, RGB control, and real-time system monitoring

SPECIFICATIONS:

• CPU:
• Chipset: Intel® B760 Chipset
• CPU Compatibility: Supports Intel® 14th,13th & 12th Gen Core™, Pentium® Gold and Celeron® Processors
• CPU Socket: LGA1700
• Memory Support:
  • 4 x DIMM slots, up to 192GB total
  • DDR5 7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz
  • Dual-channel architecture
  • Intel® Extreme Memory Profile (XMP) support
• Graphics:
  • 1 x DisplayPort
  • 1 x HDMI™port
• Expansion Slots:
  • Intel® CoreTM Processors (14th & 13th & 12th Gen)*
    • 1 x PCIe 5.0 x16 slot
  • Intel® B760 Chipset
    • 1 x PCIe 4.0 x4 slot
    • 1 x PCIe 3.0 x1 slot
• Storage:
• Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® CoreTM Processors (14th & 13th & 12th Gen)
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® B760 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
  • 4 x SATA 6Gb/s ports
• Ethernet: 1 x Realtek 2.5Gb ethernet TUF LANGuard

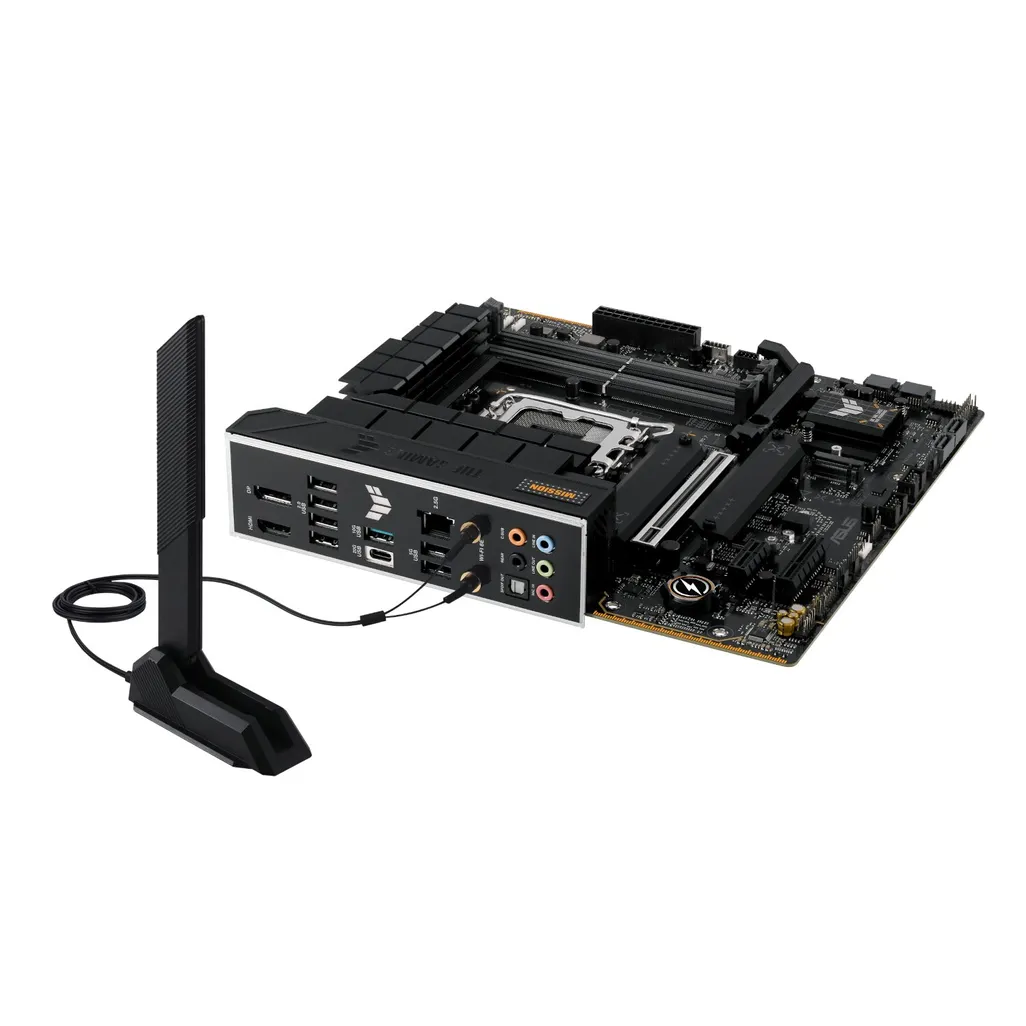

• Wireless & Bluetooth:
  • 2x2 Wi-Fi 6E (802.11ax)
  • Bluetooth® v5.3 (2.4/5/6GHz)
• USB:
  • Rear USB (Total 8 ports)
    • 1 x USB 20Gbps port (1 x USB Type-C®)
    • 1 x USB 10Gbps port (1 x Type-A)
    • 2 x USB 5Gbps ports (2 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 8 ports)
    • 1 x USB 10Gbps connector (supports USB Type-C®)
    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 3 x USB 2.0 headers support 5 additional USB 2.0 ports
• Audio:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
    • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    • Supports up to 24-bit/192 kHz playback
  • Audio Features
    • Audio Shielding
    • Rear optical S/PDIF out port
    • Premium audio capacitors
    • Dedicated audio PCB layers

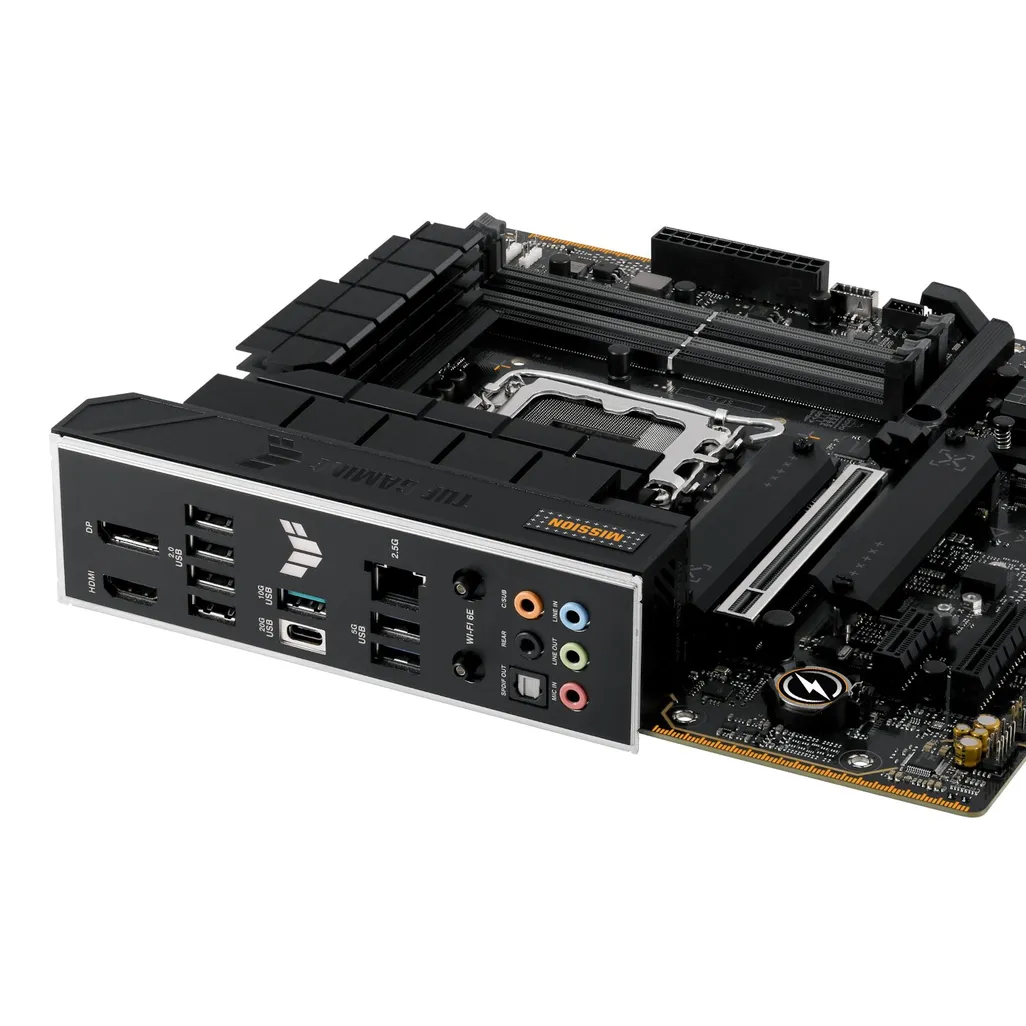

• Back Panel I/O Ports:
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 1 x USB 10Gbps port (1 x Type-A)
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
• Internal I/O Connectors:
  • I/O Connectors  Fan and Cooling related
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin CPU OPT Fan header
    • 1 x 4-pin AIO Pump header
    • 3 x 4-pin Chassis Fan headers
  • Power related
    • 1 x 24-pin Main Power connector
    • 2 x 8-pin +12V Power connectors
  • Storage related
    • 3 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • USB
    • 1 x USB 10Gbps connector (supports USB Type-C® )
    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 3 x USB 2.0 headers support 5 additional USB 2.0 ports
  • Miscellaneous
    • 3 x Addressable Gen 2 headers
    • 1 x Clear CMOS header
    • 1 x Front Panel Audio header (AAFP)
    • 1 x 20-3 pin System Panel header with Chassis intrude function
    • 1 x Thunderbolt™ (USB4®) header
• Special Features:
  • ASUS TUF PROTECTION
    • DIGI+ VRM (- Digital power design with DrMOS)
    • ESD Guards
    • TUF LANGuard
    • Overvoltage Protection
    • SafeSlot Core+
    • Stainless-Steel Back I/O
  • ASUS Q-Design
    • M.2 Q-Latch
    • PCIe Slot Q-Release
    • Q-Antenna
    • Q-DIMM
    • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot     Device [yellow green])
  • ASUS Thermal Solution
    • M.2 heatsinks
    • VRM heatsink design
  • ASUS EZ DIY
    • CPU Socket lever protector
    • ProCool
    • Pre-mounted I/O shield
    • SafeDIMM
  • AURA Sync
    • Addressable Gen 2 headers
• Software Features:
  • ASUS Exclusive Software
  • Armoury Crate
    • AURA Creator
    • AURA Sync
    • Fan Xpert 2+
    • Power Saving
    • Two-Way AI Noise Cancellation
  • AI Suite 3
    • DIGI+ VRM
    • PC Cleaner
  • TUF GAMING CPU-Z
  • DTS Audio Processing
  • MyASUS
  • Norton 360 for Gamers (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)
  • UEFI BIOS
  • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
