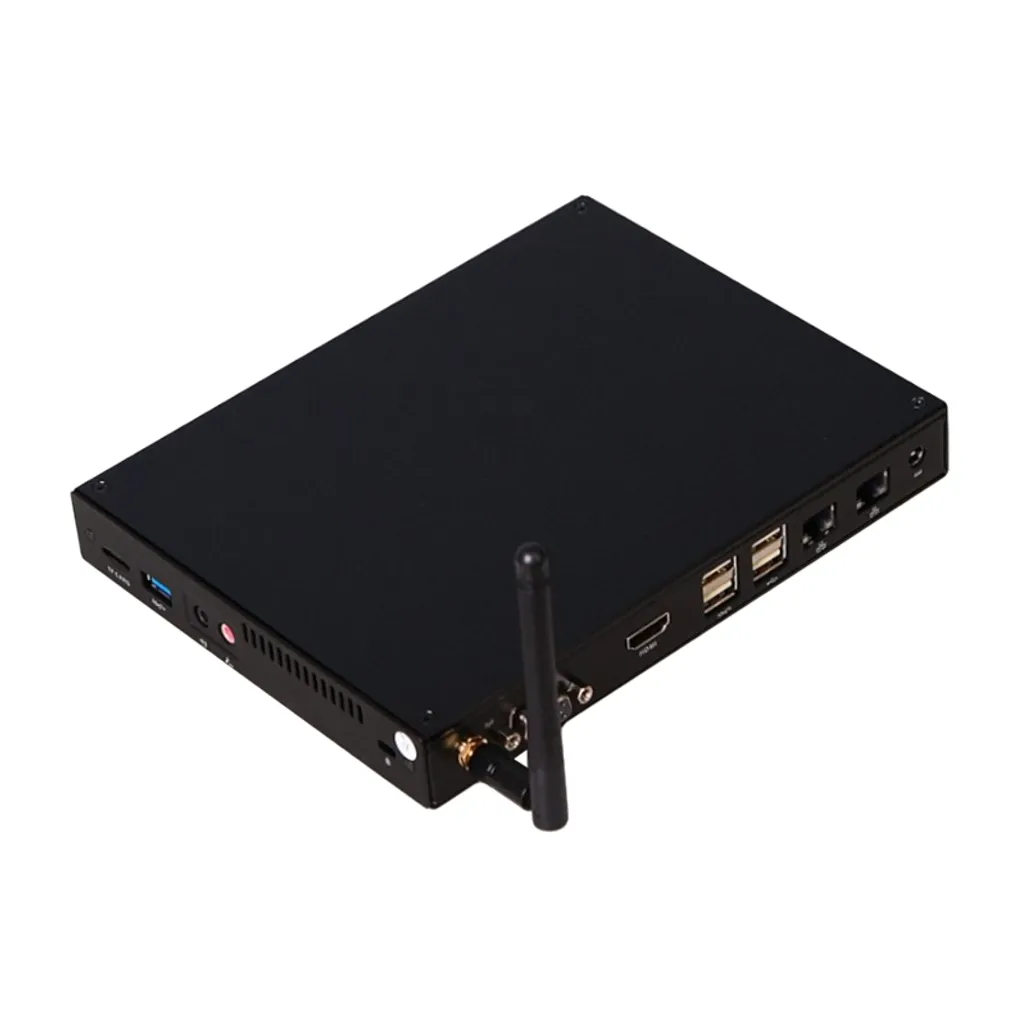

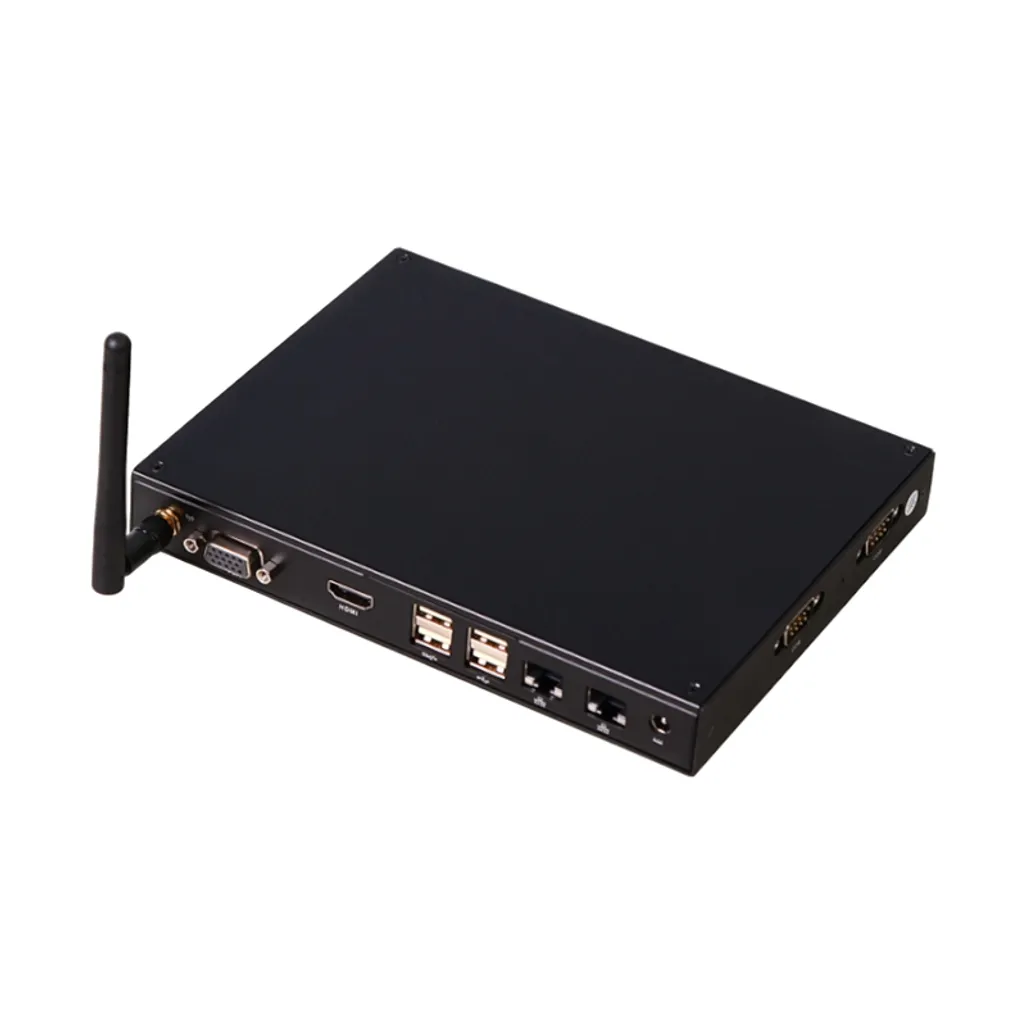

The Giada F110D Fanless Digital Signage Player is an entry-level embedded computer and is ideal for signage player applications in hospitality, retail, commercial, service and advertising roles. Its compact and powerful design brings organizations all the performance and efficiency of the Intel® Celeron® J1900 CPU, plus a VGA and HDMI output with up to 1080p resolution support. Its VGA, HDMI, USB ports, dual gigabit LAN, Windows and Linus OS support, and support for mSATA SSDs and mini-PCIe 4G cards make it very versatile. It can also be mounted in various ways thanks to its VESA mount support and can easily be hidden behind a monitor or large format display.
FEATURES:
- Intel® Celeron® J1900 Processor
- 1 x DP, 1 x HDMI, Supporting 4K Display
- 1 x SODIMM DDR3L slot (support up to 8GB)
- 1 x 2.5" SATA, 1 x Full Size mSATA, 1 x TF Card Reader
- 1 x Half-size Mini-PCIe for WiFi/BT
- 2 x RJ45
SPECIFICATIONS:
- Processor:
- CPU: Intel® Celeron® J1900 Processor
- Frequency: 2.00GHz (Up to 2.42GHz)
- BIOS: AMI Source Code
- Chipset: SOC
- Memory:
- Type: DDR3L-1333MHz
- Socket: 1 x SO-DIMM
- Max Size: 8GB
- Graphics:
- GPU: Intel® HD Graphics
- Graphic Engine: DirectX 11.1, OpenGL 3.0, OCL 1.1, OpenGL ES 2.0
- HDMI: 1 x HDMI (Max.1920x1080@60Hz)
- VGA: 1 x VGA (Max. 2048 x 1280@60Hz)
- Network:
- Controller: 2 x Realtek 8111H Gigabit Ethernet
- Interface: 2 x RJ45
- I/O:
- USB: 1 x USB 3.0, 4 x USB 2.0
- Serial Port: 2 x RS232
- Audio: 1 x MIC-IN, 1 x AUDIO-OUT & SPDIF
- Mini-PCIe1#: 1 x Full-size Mini-PCIe for mSATA/3G/4G
- Mini-PCIe2#: 1 x Half-size Mini-PCIe for WiFi/BT
- SIM: 1 x SIM Slot
- Storage:
- SATA: 1 x 2.5" SATA
- mSATA: 1 x Full-size mSATA
- Card Reader: 1 x TF Card Reader
- JAHC Tech:
- WatchDog Timer: 0~255 Second Time Out Support
- Auto Power On: Power Activated Automatically Start
- RTC: Set Up Independently Every day, A Week as a Cycle
- Remote Control: By IR Controller for Power On
- Wake On Lan: Yes
- Operation System:
- Windows: Windows 7/8.1/10(64-bit)
- Linux: Support
- Power:
- Power Type: DC-IN
- Input Voltage: 19V/2.1A
- Environment:
- Operating Temperature: 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
- Relative Humidity: 95%@40℃ (non-condensing)
- Certification: CE, FCC Class B, CCC
- Fanless: Yes
- Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)
- Construction: Metal
- Colour: Black
- Dimensions: 18.9 x 14.8 x 2.6 cm
WHAT'S IN THE BOX:
- Giada F110D Intel Celeron Fanless Digital Signage Player - Black x1
- Power Cable x1
- User Manual x1
