PCBuilder CUBE-i5 Intel Mini PC Barebone

The PCBuilder CUBE-i5 Intel® Mini PC is a compact PC designed to deliver high-performance in a space-saving form factor. Whether you need a reliable workstation, an efficient digital signage system, or a powerful point-of-sale (POS) solution, this compact PC offers exceptional speed and responsiveness. Powered by the Intel® Core™ i5-1235U processor with 10 cores and 12 threads, reaching speeds of up to 4.40GHz, it ensures seamless multitasking and smooth performance for business and professional applications.

Built for productivity, the CUBE-i5 Intel® Mini PC supports stunning 8K visuals with Intel® Iris® Xe Graphics, making it ideal for presentations, content creation, and high-resolution displays. The inclusion of dual HDMI 2.1 ports allows users to extend or mirror their display, enhancing workflow efficiency and supporting multi-monitor setups for improved multitasking. Whether you're managing spreadsheets, video conferencing, or running multiple applications simultaneously, this compact PC ensures crisp, vibrant visuals at 8K@60Hz.

Connectivity is seamless with a variety of high-speed options. Equipped with Intel® Wi-Fi 6 (802.11ax), Bluetooth® 5.2, and Gigabit Ethernet, this compact PC provides fast, reliable networking whether you’re working in an office, a co-working space, or a remote setup. The inclusion of ultra-fast USB 3.2 and Thunderbolt™ 4 ports enables high-speed data transfers up to 40Gbps, making it perfect for professionals who need quick file access, fast backups, and seamless peripheral connections.

Storage flexibility is another key advantage of this compact PC. It supports an M.2 PCIe 4.0 NVMe SSD for ultra-fast boot times and application loading, a 2.5-inch SATA HDD for additional storage capacity, and a microSD card reader for quick and convenient file transfers. Whether you're handling large files, installing software, or expanding storage over time, the CUBE-i5 Intel® Mini PC provides the adaptability you need.

Designed to maximise workspace efficiency, this compact PC is VESA-mountable, allowing users to attach it behind a monitor to create a clean, clutter-free environment. Its durable construction ensures long-lasting reliability, while the built-in Kensington lock slot provides extra security in shared office spaces, retail settings, or educational institutions.

For those seeking a compact PC that balances power, efficiency, and space-saving design, the PCBuilder CUBE-i5 Intel® Mini PC is an excellent choice. With its high-speed performance, seamless connectivity, and ultra-responsive power, this compact PC is built to enhance productivity in any modern professional setting. Whatever your need, the CUBE-i5 Intel® Mini PC is ready to power your success.

Built in-house by our experienced technicians, each build is constructed with care and precision. They’re packaged with protective foam that secures the components while in transit, so every build arrives at its destination ready to use from day one. PCBuilder mini PCs come with a 2-year warranty.

FEATURES:

• Get full PC performance in a compact design, perfect for offices, digital displays, and POS systems
• Intel® Core™ i5-1235U, featuring 10 cores and 12 threads for speeds up to 4.40GHz
• Enjoy ultra-fast data transfer speeds with Type-C Thunderbolt™ 4 and USB up to 10Gbps
• Experience crisp 8K visuals with Intel® Iris® Xe Graphics for stunning displays
• M.2 NVMe SSD, SATA HDD, and microSD slots for ultimate storage flexibility
• Stay connected with high-speed Wi-Fi, Bluetooth, and Gigabit Ethernet for seamless networking
• Extend or mirror up to 3 additional displays for boosted productivity
• A sleek, minimalist design that saves space and mounts seamlessly

SPECIFICATIONS:

• Colour: Black & anodised grey
• Material: PC, ABS, & aluminium alloy
• Kensington lock slot: Yes
• LAN: GbE Ethernet (2.5Gbps)
• Wireless LAN: Intel® Wi-Fi 6 (Wi-Fi 802.11 a/b/g/n/ax)
• Bluetooth: V5.2
• VESA mount: Yes (included)
• AC input Input: 100-240V (50/60Hz)
• DC output Output: 65W (19V/3.42A)
• Total draw power (TDP): 15W
• Chipset: Intel® Core™ i5-1235U Processor (10 cores/12 threads, 12MB Intel® Smart Cache up to 4.40GHz)
• GPU: Intel® Iris® Xe Graphics
• Memory slot: 2x Dual-channel DDR4 SO-DIMM (up to 64Gb@3200MHz)
• Storage slots:
  • 1x M.2 PCIe 4.0 NVME (SSD)
  • 1x 2.5″ SATA (HDD)

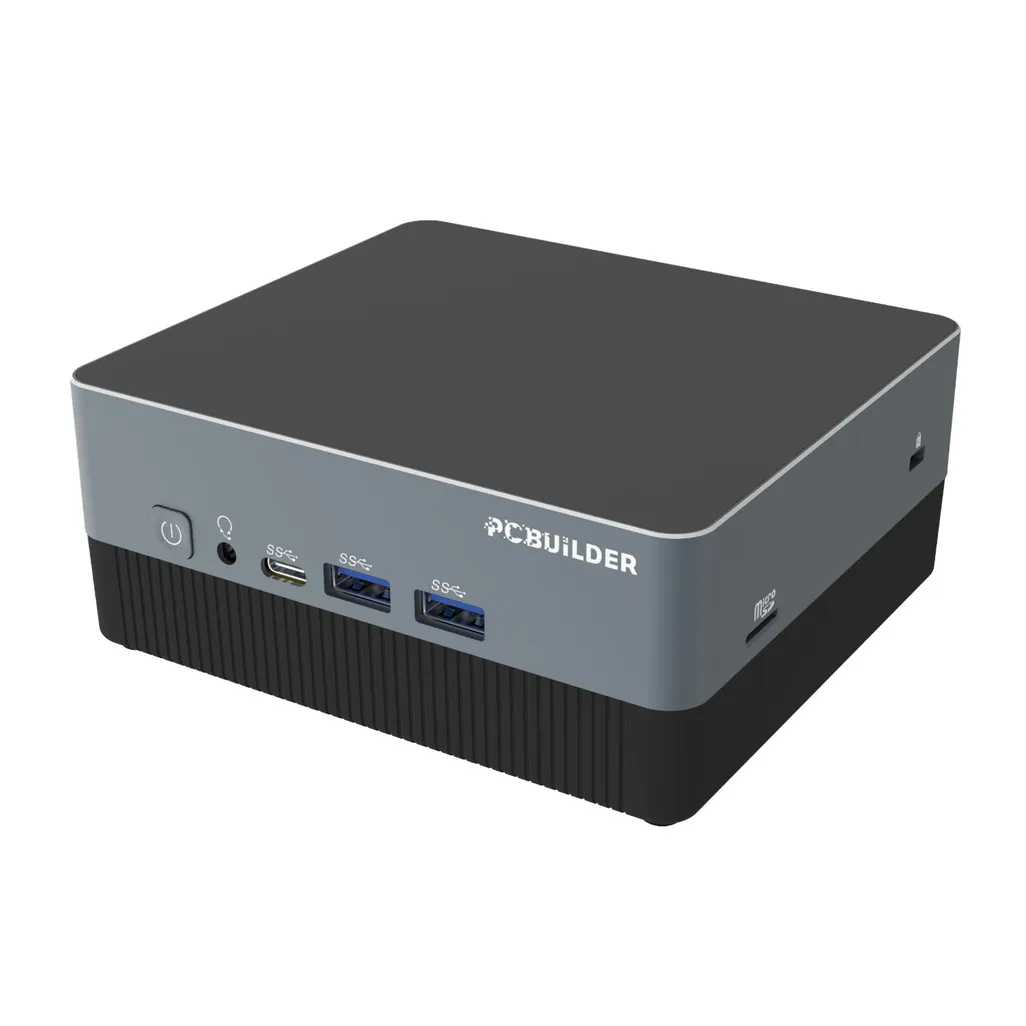

• Ports (front):
  • 1x 3.5mm AUX (dual line-out mic-in)
  • 2x USB3.2 (up to 10Gbps)
  • 1x Type-C Thunderbolt™ 4 (up to 40Gbps): 7680 x 4320 (8K@60Hz)
  • 1x RJ45 Gigabit Ethernet (2.5Gbps)

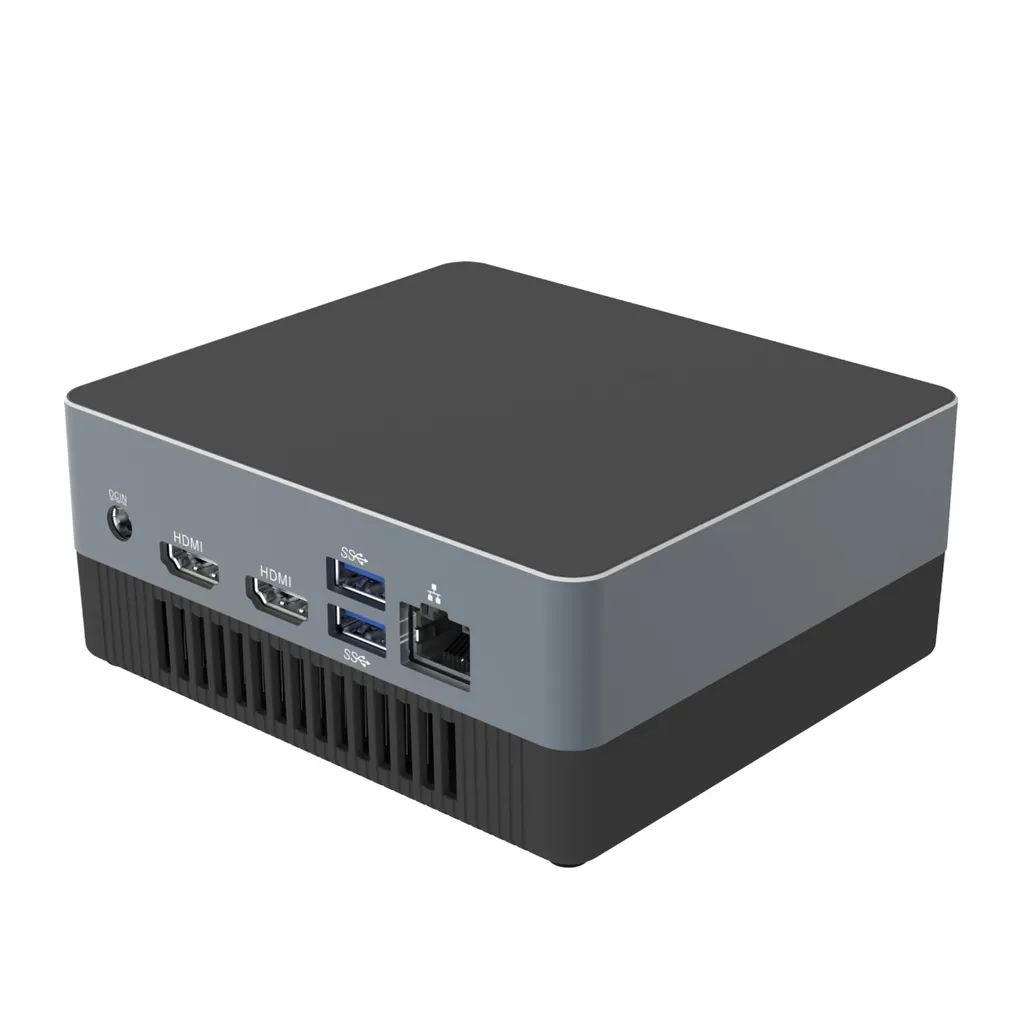

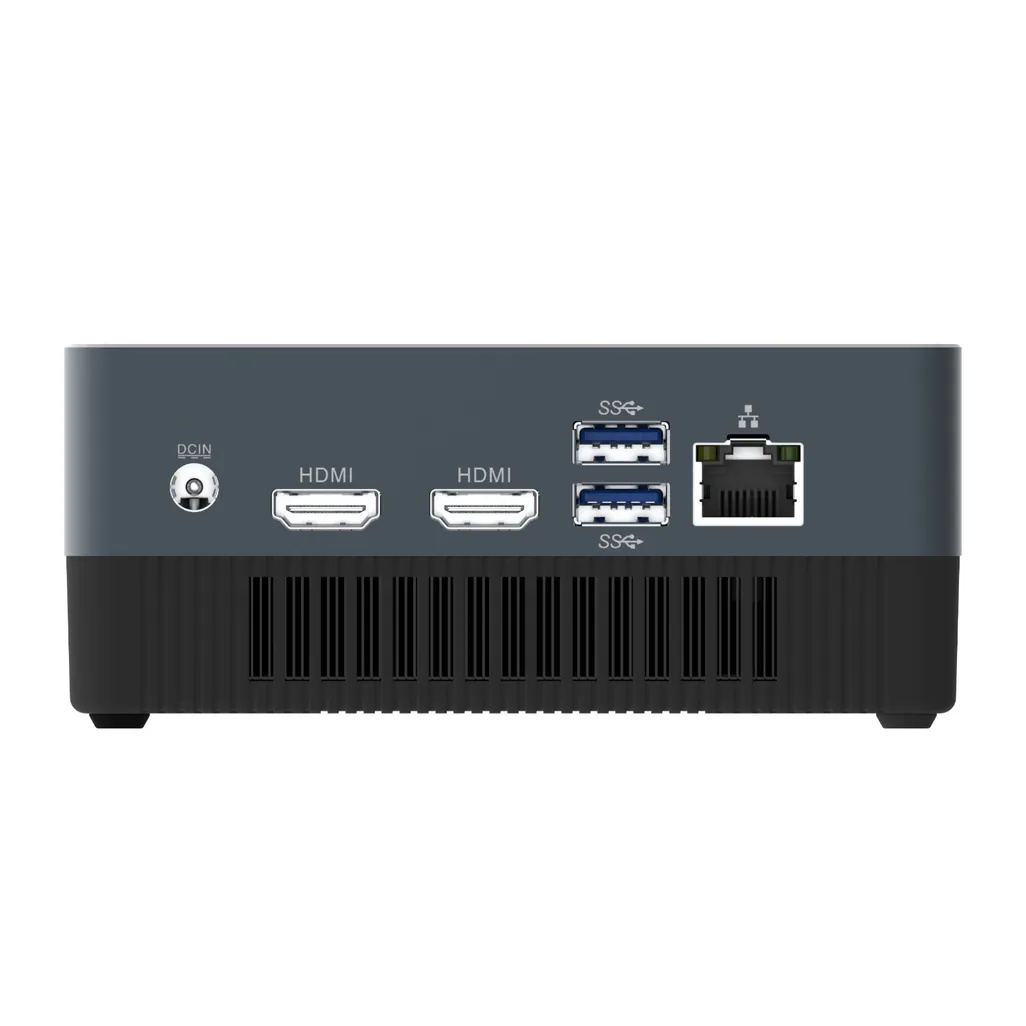

• Ports (back):
  • 1x DC power
  • 2x HDMI 2.1: 4096 x 2160 (4K@60Hz)
  • 2x USB3.2 Gen 2 (up to 10Gbps)
• Ports (right): 1x microSD card reader (up to 32GB)
• Operating temperature: 0°C to 40°C
• Product Dimensions: 12.5 x 11 x 4.3 cm
• Product Weight: 420g

WHAT’S IN THE BOX:

• PCBuilder CUBE-i5 Intel® Mini PC Barebone x1
• AC adapter x1
• VESA mounting bracket x1
• M4 mounting screws x4
• M3 mounting screws x2
• User manual x1

Please Note: This unit is a barebone PC that only includes the motherboard and CPU. The memory, storage and Operating System needs to be purchased and installed separately. Images are for illustrative purposes only.
